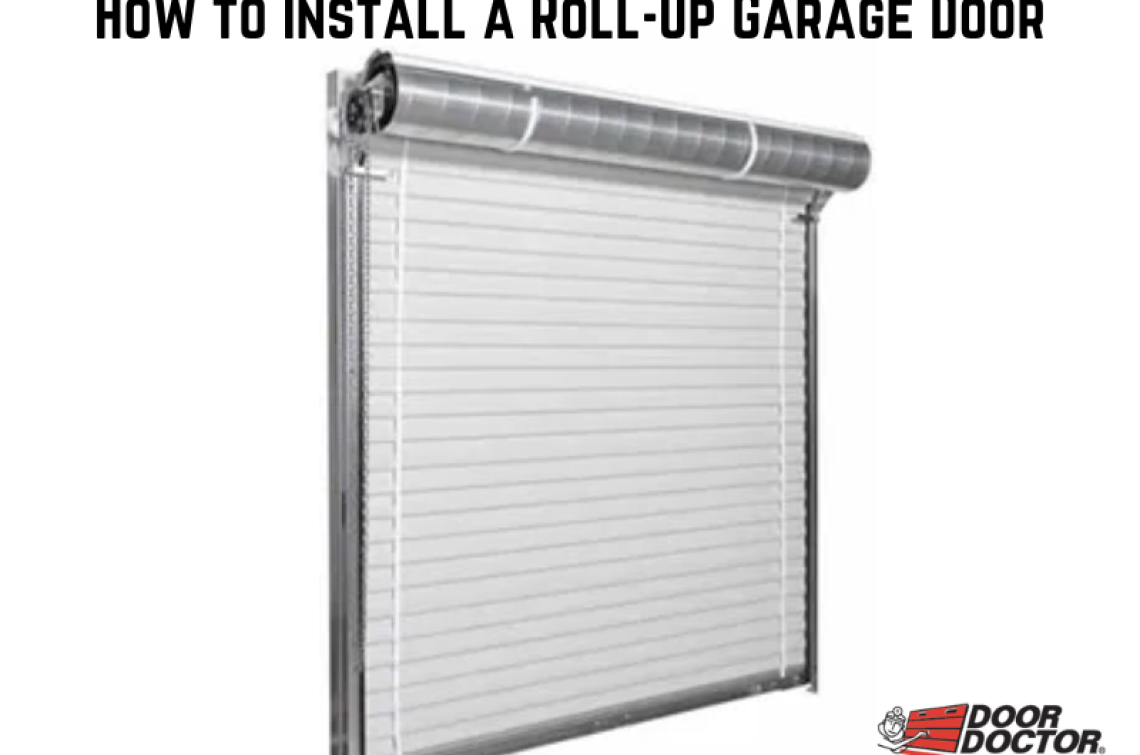

Looking to improve your garage's functionality and aesthetics?

A roll-up garage door is a perfect solution.

Not only are they sleek and space-saving, but they also offer smooth operation and increased security. While professional installation is always an option, knowing how to install a roll-up garage door yourself is a rewarding and cost-effective project for the handy homeowner.

Tools Required to Install Roll-Up Garage Door

Before you begin, ensure you have all the necessary tools and materials:

• Roll-up garage door kit
• Measuring tape
• Level
• Drill
• Screwdriver
• Hammer
• Wrench
• Ladder

Steps to Install Roll-Up Garage Door

Step 1: Preparation is Key

Before you dive into installation, ensure a smooth process by checking your garage door opening:

• Measure Up: Match the door size to the opening's measurements. Don't skip this crucial step!
• Level Check: Grab a level and ensure both the top (head) and bottom (jamb) of the opening are level.
• Plumb Jambs: Verify that the door jambs (vertical sides) are perfectly plumb (straight up and down).
• Track Alignment: Make sure the existing track (if present) sits flush with the opening.
• Gather the Troops: Double-check that you have all the installation parts before you begin.

Step 2: Getting Organized

Now that you're prepped, let's get the door and parts ready for installation:

• Clean Sweep: Give the floor a good cleaning to avoid scratches or damage to the door curtain (panels).
• Track Time: Place the left track upright on the floor, positioned perpendicular to the opening. The track bottom should be against the left jamb, with the inside top flush against the building. Repeat this process for the right side.
• Hardware at the Ready: Lay out all the hardware on their respective sides for easy access during installation.

Step 3: Securing the Brackets

The brackets hold the door panels in place, so ensure a secure fit:

• Bracket Orientation: Position the bracket with the shorter side facing upwards.
• Tensioner Pawl Clearance: Make sure the tensioner pawl (locking mechanism) doesn't obstruct the ratchet wheel.
• Track and Bracket Alignment: Align the track and bracket so the hooks can be inserted with ease.
• Locking It In: Fit the bracket and track together until the locking tab clicks securely into the notch on the bracket.

Step 4: Lifting the Assembly

With the brackets and tracks secured, it's time to raise the door assembly:

• Two Hands are Better: This step requires two people for the safe and proper installation (or replacement) of the door.
• Track Placement: Ensure the bottom tracks are resting face-up towards the door jambs.
• Pivot and Raise: Carefully pivot the assembly around the jambs as you lift it into position.

Step 5: Fastening the Tracks

Now that the assembly is in place, let's secure the tracks and brackets to the jambs:

• Level Up: Double-check the position of the tracks and brackets with a level for accuracy.
• Fastener Frenzy: Use appropriate fasteners to attach brackets and tracks securely.
• Bracket Spacing: Maintain at least a one-inch gap between the front and back of the brackets.
• Bracket Centering: Ensure the brackets are centered on the jambs for a balanced look.
• Material Matters: The fastener type depends on your jamb material. Refer to the table below for specific recommendations (steel, concrete, wood).

Step 6: Spring Time

With the door panels secured on the brackets, let's adjust the spring tension:

• Spring Rotation: Rotate the spring to achieve proper tension, typically around 1.5 revolutions.
• Rotation Direction: Rotate the spring in the direction that allows the door to move downwards through the bottom tracks.

Step 7: Stopping the Door

The head stop prevents the door from hitting the casing too hard when open. Let's attach it:

• Head Stop Release: Release the head stop from inside each track.
• Securing the Stop: Use a hex screw to secure the head stop firmly to the track.

Step 8: Finishing Touches

These final steps ensure a functional and user-friendly door:

• Stop clip installation: Attach a stop clip using a carriage bolt and nut at the bottom of each bar.
• Handle installation: Mount the handles on the outside bottom bar using carriage bolts and nuts.
• Rope installation: Thread the rope through the center hole of the bottom bar angle.

Call the Professionals for Roll-Up Garage Door Installation

While DIY garage door installation is possible, hiring the professionals of Door Doctor is generally recommended to ensure it's done correctly and safely.

Contact us today if you're looking for garage door repair in Ottawa, Montreal, Kingston, or Toronto/Brampton.

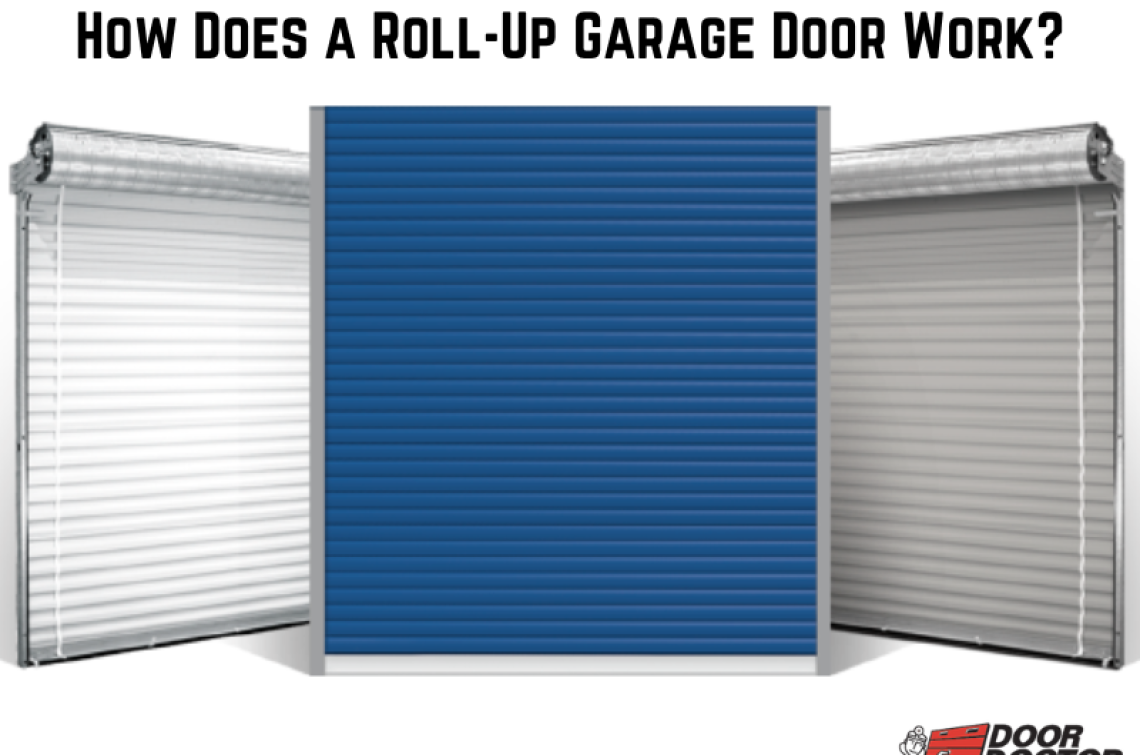

Roll-up garage doors are common in homes, businesses, and industrial settings. They offer a space-saving design, ease of operation, and durability.

But have you ever wondered how these seemingly simple doors function? This blog post will unveil the inner workings of a roll-up garage door, exploring its components and the mechanics behind its operation.

Essential Parts of Roll-Up Garage Door

A roll-up garage door consists of several key parts that work together seamlessly:

• Door Slats: These horizontal interlocking slats, typically made of galvanized steel or aluminum, form the main body of the door. They are lightweight yet strong, allowing for smooth rolling.
• Bottom Rail: This sturdy metal piece acts as the door's leading edge, guiding it along the tracks during operation.
• Side Tracks: These vertical tracks, mounted on either side of the door opening, provide the pathway for the door to travel up and down.
• Drum: Located at the top of the door frame, this cylindrical barrel houses the coiled door slats when the door is open.
• Spring System: A torsion spring, typically located above the drum, counterbalances the door's weight, making it easier to open and close.
• Motor (Optional): Many rollup garage doors are equipped with electric motors for automatic operation. These motors connect to the drum or shaft, allowing for remote control opening and closing.
• Control Panel (Optional): This keypad or remote control unit transmits signals to the motor, triggering the door's operation.

How a Roll-Up Garage Door Works

Let's dissect how a roll-up garage door works:

Opening Sequence

1. Activation: The process initiates when you trigger the opening mechanism, whether manual or electric.
2. Drum Rotation: This action prompts the drum, linked to the slats, to rotate.
3. Slats Ascend: As the drum rotates, the slats disengage from the bottom track and begin their vertical ascent.
4. Coiling: Guided by the track system, the slats continue rising until they fully coil around the drum at the top of the opening.

Closing Procedure

1. Reversal: To close the roll-up garage door, the sequence reverses.
2. Motor Reversal or Manual Force: The motor reverses its direction, or manual force is applied in the downward direction.
3. Drum Reversal: Consequently, the drum rotates in the opposite direction, causing the slats to unwind.
4. Vertical Descent: Guided by the tracks, the slats descend vertically, interlocking as they go down.
5. Securing Closure: Once fully lowered, the bottom slat re-engages with the track, ensuring a secure closed position.

Safety Features of Roll-Up Garage Door

Modern roll-up garage doors incorporate several safety features:

• Auto-Reverse Mechanism: This feature ensures the door automatically reverses its direction if it encounters an obstruction while closing, preventing injuries or damage.
• Bottom Bracket Safety Sensor: This sensor detects objects beneath the closing door, triggering a reversal to prevent crushing accidents.
• Emergency Release Cord: This allows manual door opening in case of a power outage or motor malfunction.

Conclusion

By understanding the components and how does a roll-up garage door works, you gain a deeper appreciation for its functionality and safety features. This knowledge can also empower you to make informed decisions regarding maintenance, repairs, and potential upgrades for your roll-up garage door system.

Contact Door Doctor today to learn more about roll-up garage door and to get one for your home or office!

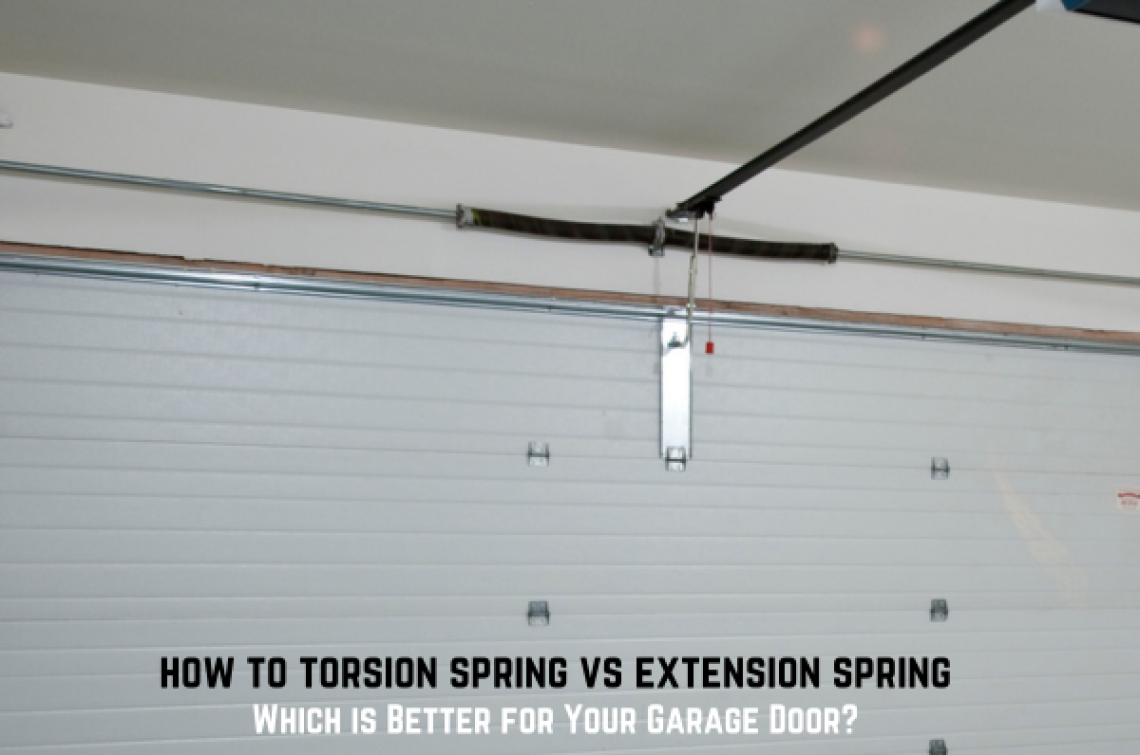

When it comes to garage door repairs or replacements, choosing the right type of spring is crucial for smooth operation and longevity.

Torsion and extension springs are the two primary options, each with unique characteristics and advantages. Understanding the differences between them can help you make an informed decision about which one is better suited for your needs.

What are Torsion Springs?

Torsion springs, positioned horizontally above the garage door, store energy as they twist when the door closes and then release it as the door opens. This setup ensures a smoother and more controlled operation compared to extension springs.

Notably, torsion springs boast superior durability and longevity over extension springs, making them a cost-effective option. Moreover, their parallel installation to the door tracks enhances safety by minimizing the risk of accidents or injuries.

What are Extension Springs?

Extension springs, positioned vertically on either side of the garage door, elongate and contract to aid the door's movement. Though simpler to install, they demand more upkeep than torsion springs. Despite being cost-effective, extension springs are vulnerable to wear and tear due to exposure, necessitating more frequent replacements.

Torsion Spring Vs Extension Spring

Which One is Better? — Torsion Spring Vs Extension Spring

While both types have their merits, torsion springs generally emerge as the victor due to their safety, durability, and quieter operation. However, there can be cases where extension springs make sense:

• Tight budget: Extension springs offer a more affordable option if cost is a primary concern.
• Limited headroom: Extension springs might be your only choice if space above the door is restricted.
• DIY repairs: If you're comfortable with repairs, the simpler spring replacements of extension springs might appeal to you.

Conclusion

Consulting a professional garage door technician, such as Door Doctor, is always recommended to assess your specific needs and suggest the best spring system. They can also handle safe installation and ensure your door operates smoothly and safely for years.

Contact Door Doctor today to learn more about what’s better for your garage door.

Imagine pulling up to your garage door, pressing a button, and watching it magically open without the need for keys or remotes. Sounds like a dream, right?

Well, it's not!

With a little tech magic, you can program your car to automatically open your garage door, streamlining your arrival and departure routines. This blog post will guide you through the process, whether you're a tech whiz or a self-proclaimed "gadget newbie”.

Understanding Garage Door Openers

Before diving into programming, you must understand the basics of your garage door opener. Essentially, your garage door opener acts as the mechanical heart of your garage, responsible for effortlessly raising and lowering your door. While specific models may differ in features and button placements, the underlying principle remains consistent.

For example, with overhead door operators, the programming button layout at the back of the unit includes key elements: a Program/Set button, an open travel button, a close travel button, and two LED lights—one circular and one elongated. This configuration is crucial for facilitating the programming of your standard remote.

How to Program the Standard Garage Door Opener Remote

To program a standard garage door opener remote:

• Press and hold the Program button until an LED light illuminates.
• Depending on your model, you may need to press the Program button again to access the correct menu option for remote programming.
• Look for flashing LED lights, indicating that your opener is ready for programming.
• Press and release the button on the remote you want to use, repeating as necessary. This button will now operate the door.

Programming Your Car to Garage Door Opener

Programming your vehicle's garage door opener follows a similar process to programming a remote.

• Press the Program/Set button on the back of your opener for two seconds.
• The round LED light will turn blue, and the long LED light will flash purple.
• Avoid holding the button, as this action could reset the entire programming, requiring the reprogramming of all your remotes.
• Act swiftly and press the button on the remote control in your vehicle twice. Both LED lights will flash and then turn off, indicating that the vehicle's remote has been successfully programmed.

This task may require two people for efficient completion.

Once programmed, use the vehicle's opener, and the door should lift as expected.

Conclusion

For assistance with setting and pairing your garage door opener and remotes, including those in your vehicle, rely on the expertise of Door Doctor. Our commitment to customer service extends beyond the initial sale.

Contact us today for assistance.

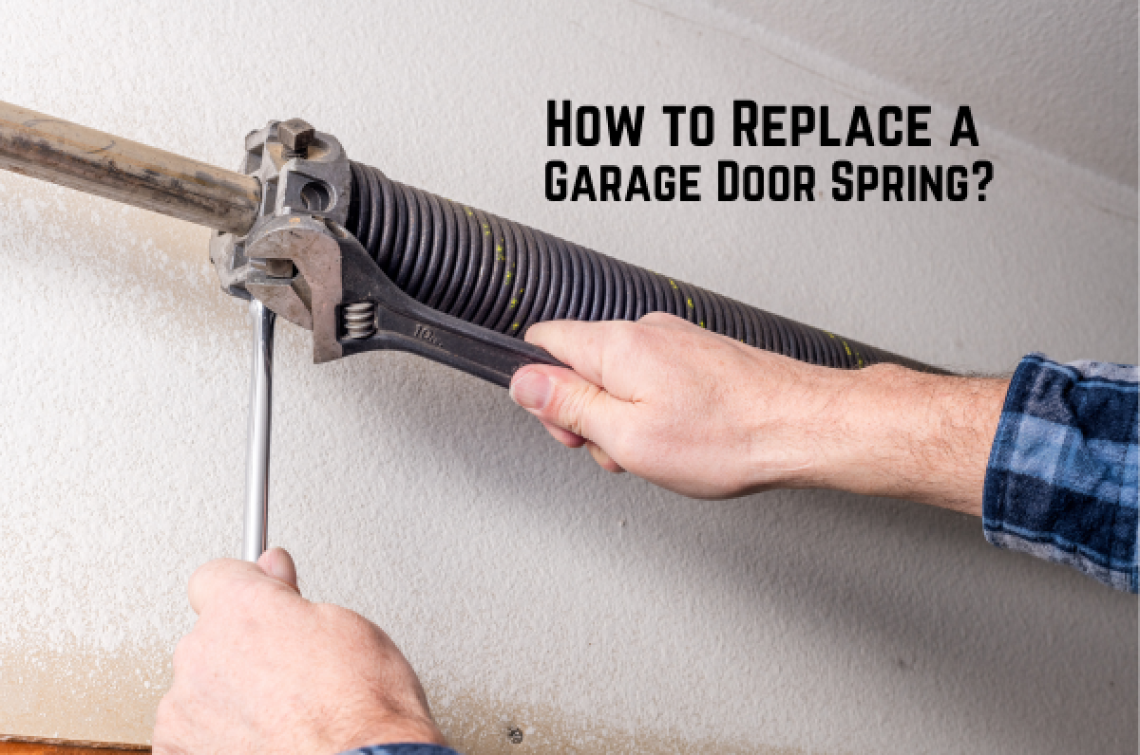

Think of garage door springs as muscles for your heavy door. They counter its weight, letting you open and close it smoothly, manually or with an opener. But like any muscle, these high-tension steel ones get tired over time and lose their lift. Replacing them keeps your door swinging smoothly.

While replacing these springs is possible for brave DIYers, caution is key! Springs under tension can be dangerous. Consider calling a pro unless you're a skilled (and very careful) handyman with the right safety gear and tools. Trust us, your safety is worth more than the DIY savings.

Remember: Professionals handle these tough guys safely and efficiently, keeping your garage door happy and your fingers safe.

What are the Various Types of Garage Door Springs?

Selecting the correct replacement springs for your garage door is crucial for safe and optimal operation. There are two main types used in residential homes: torsion and extension. Understanding their differences and matching them accurately is key.

Torsion Springs

• Appearance: Heavy-duty, coiled springs mounted around a metal rod above the door opening.
• Function: Counterbalance the door's weight by twisting on the rod, creating tension.
• Suitability: Typically for heavier garage doors.

Extension Springs

• Appearance: Long, lighter-weight springs positioned above the horizontal tracks, running perpendicular to the door.
• Function: Counterbalance the door's weight by stretching out using cables and pulleys.
• Suitability: Often used for lighter garage doors.

Pros & Cons of DIY Spring Replacement

Replacing Extension Garage Door Springs

Sick of dealing with a noisy, slow garage door? Upgrading worn-out extension springs can solve the problem! Here's a quick rundown:

Get the Right Springs

• Buy springs that match your door's height (usually 7ft or 8ft).
• Consider replacing cables, pulleys, and brackets if they're worn.

Prepare for Safety

• Fully open the door and secure tracks with C-clamps or a brace.
• Unplug the opener to avoid accidental activation.

Remove the Old Springs

• Start with the farthest spring from the door.
• Unbolt it from the bracket, disconnect the lift cable, and remove the pulley.
• Repeat for the other side and disconnect the safety cables.

Install the New Springs

• Begin with the safety cable, thread it through the spring, and attach it to the brackets.
• Connect the lift cable to the spring end and track bracket in a loop pattern.
• Applying slight tension (1-2 inches) when attaching the cable to stretch the spring.
• Repeat for the other side.

Finish and Test

• Lubricate the springs with garage door spray.
• Reconnect the opener, remove the clamps, and test the door's operation.
• Adjust the lift power if needed for stronger springs.

Replacing Torsion Garage Door Springs

Safety Measures

• Lock the garage door and disconnect the opener.
• Secure door tracks with C-clamps to prevent accidental opening.
• Use a sturdy stepladder for safe access.

Unloading the Springs

• Choose the correct winding bar for the spring opening.
• Insert and tighten setscrews gradually to release tension.
• Slide old springs down the bar and secure it with pliers.

Removing Old Springs

• Disconnect springs from the center bracket using wrenches.
• Secure the bar with pliers and disconnect the cable from the door bracket.
• Loosen the drum setscrews and remove the old spring.

Installing New Springs

• Slide new springs onto the bar bolt to the center bracket.
• Reconnect cables to their brackets and secure them in the drums.
• Tighten drum setscrews to eliminate cable slack.

Loading the Springs

• Follow the manufacturer's instructions for the twists required.
• Twist the spring upwards using two winding bars.
• Tap the winding bar with a hammer to extend the spring slightly.
• Tighten setscrews to secure the spring without over-tightening.

Finishing Touches

• Lubricate springs with garage door spray.
• Remove clamps, reconnect opener, and test door operation.
• Adjust spring tension if the door doesn't open or close fully.

Replacing garage door springs isn’t a DIY task; it can be dangerous. Seek professional help if unsure.

Conclusion

By following these steps and prioritizing safety, you can successfully replace your garage door spring and get your door functioning smoothly again. However, if the project seems overwhelming or safety concerns arise, don't hesitate to seek help from the professionals of Door Doctor. Remember, peace of mind and avoiding potential injuries are priceless.
