Linear MDT-1A 1-Channel Visor Transmitter

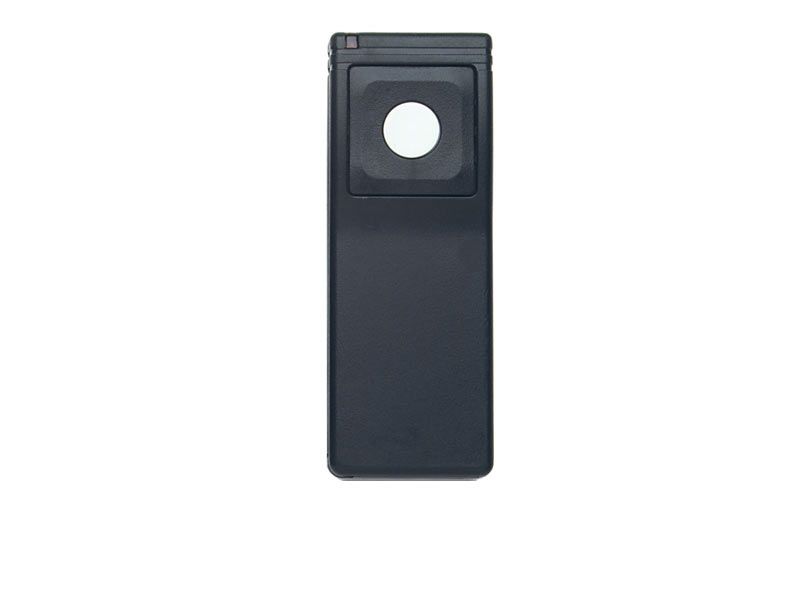

The Model MDT-1A 1-Channel Visor Transmitter is designed for use with Linear’s access control products. The Model MDT-1A is a single-channel device. Pressing either the round button on the transmitter’s front, or the small button on the transmitter’s top will send the same signal. The top button can be hidden with the top button cover supplied. Also included are lithium batteries with a five-year service life and a visor clip.
The transmitter is MegaCode format, which means each transmitter is factory preprogrammed with one of over 1,000,000 codes, virtually eliminating the possibility of code duplication. Because the receiver ”learns” each specific code, no unauthorized person can gain access to the system by reprogramming a transmitter.
Order number: DNT00052A
-
Features
- Compatible with all Linear access receivers and controllers
- Superior transmission range
- Factory programmed MegaCode format supports over 1,000,000 codes
- Unique ”Extra” top button
- High visibility operate LED
- Visor clip included
- Power: Two 2032 batteries
- Codes: 1,000,000+ (MegaCode format)
General specifictions
- Battery Life : Up to five years
- Frequency : 318 MHz
- Number of Codes : 1,000,000 plus
- Channels : one channel
- Power : Two 3V 2032 type lithium batteries (supplied)
- Dimensions : 1.6" W x 4.2" H x 0.8" D (41 x 107 x 20 mm)
Models compatible with the ACT-31D
- AE1000Plus : Commercial Telephone Entry System with Access Control - Four Doors
- AE2000Plus : Commercial Telephone Entry System with Access Control - Four Doors, Large Screen
- AKR-1 : Exterior Digital Keypad with Radio Receiver
- AM-RPR : Remote Proximity Receiver
- AM-RRR : Remote Radio Receiver
- MDR : 1-Channel Receiver
- MDR-2 : 2-Channel Receiver
- MDRG : 1-Channel Gate Receiver
- SMDRG : 1-Channel Gate Receiver
- WOR Wiegand Output Receiver
Features
Features
- Compatible with all Linear access receivers and controllers
- Superior transmission range
- Factory programmed MegaCode format supports over 1,000,000 codes
- Unique ”Extra” top button
- High visibility operate LED
- Visor clip included
- Power: Two 2032 batteries
- Codes: 1,000,000+ (MegaCode format)
General specifictions
- Battery Life : Up to five years
- Frequency : 318 MHz
- Number of Codes : 1,000,000 plus
- Channels : one channel
- Power : Two 3V 2032 type lithium batteries (supplied)
- Dimensions : 1.6" W x 4.2" H x 0.8" D (41 x 107 x 20 mm)
Compatible models
Models compatible with the ACT-31D
- AE1000Plus : Commercial Telephone Entry System with Access Control - Four Doors
- AE2000Plus : Commercial Telephone Entry System with Access Control - Four Doors, Large Screen
- AKR-1 : Exterior Digital Keypad with Radio Receiver
- AM-RPR : Remote Proximity Receiver
- AM-RRR : Remote Radio Receiver
- MDR : 1-Channel Receiver
- MDR-2 : 2-Channel Receiver
- MDRG : 1-Channel Gate Receiver
- SMDRG : 1-Channel Gate Receiver
- WOR Wiegand Output Receiver
