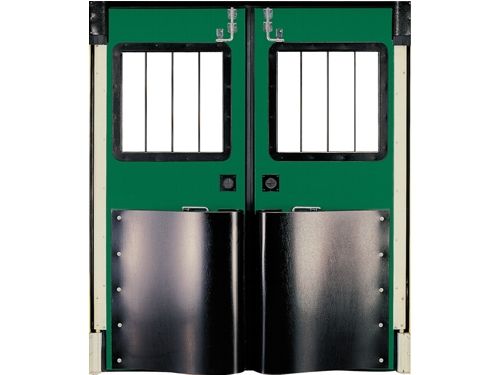

Door Panel

Proline doors can be custom manufactured to fit virtually any opening size. The panel’s outer surface is available with stainless steel, galvanized, aluminum or different color ABS face sheets. The core is constructed with a combination of wood and insulated foam.

Steel Spine

Steel spine reinforces the edge of the door against heavy impacts.

Gasketing

Full perimeter replaceable gaskets are built into the ProLoc™ edge to stand up to heavy traffic while providing a positive seal for thermal separation. Partially gasket doors are optional.

Patented ProLoc™ Edge System

Chemically bonds to the face sheets providing a positive seal and preventing moisture or contaminates from entering the door panel.

Bumpers

The ultimate in door protection, the rotationally molded high-impact teardrop bumpers act as a shock absorber, extending the life of the door. 38” high bumpers are standard on both sides of the door.

Upper Hinge

Patented v-cam hinging system has a 250° hinge that swings 125° in each direction, wide enough to allow the entire door and bumper to completely clear the opening.

Lower Hinge Guard

Optional 9” high lower hinge guard protects the jamb and lower hinge from passing loads.

Windows & Frames

Double pane windows include three security bars spaced on 7” centers making them virtually theft proof.

Additionnal Security

Upper and lower cane bolts, 2” chain or cable lock sleeves and tamper-proof fasteners are used for additional security.
