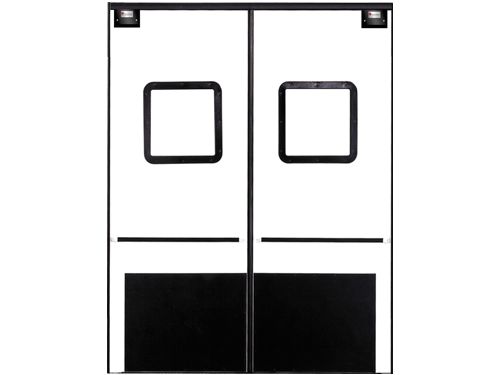

Door Panel

The doors are available insulated or non-insulated with a wooden core. The core of the insulated doors is 1-1/2” thick, combined of wood and foam and considered heavy-duty. The non-insulated wood-core doors are constructed with durable ¾” thick wood and are considered medium-duty. The doors can be manufactured to fit virtually any size opening. Surface coverings available in full height high pressure laminates, ABS impact resistant plastic, FRP, stainless steel, galvanized steel or aluminum.

Internal Reinforcement

Integrated tubular steel reinforcement from the hinge to the frame assures extra strength and durability.

Gasketing

USDA accepted durable gasketing is factory applied without the use of metal strips or fasteners, making it easy to replace in the field.

Patented ProLoc™ Edge System

Chemically bonds to the face sheets providing a positive seal and preventing moisture or contaminates from entering the door panel.

Hinge

Classic “E” series gravity close hinge system mounts to the jamb with offset hardened steel cam and rollers, for years of service and minimal maintenance.

Window & Frames

ABS window frames are chemically bonded for a permanent seal that stands up to repeated washdowns. Single pane 1/8” thick polycarbonate window is used in the wood core doors, double pane windows are used in insulated doors.

Bumper Strips

Optional bumper strips are available in PVC or extruded aluminum.

Impact Plates

Optional impact plates are available in stainless steel, galvanized steel, ABS plastic or Kydex.
