Impact Doors

Durulite Industrial

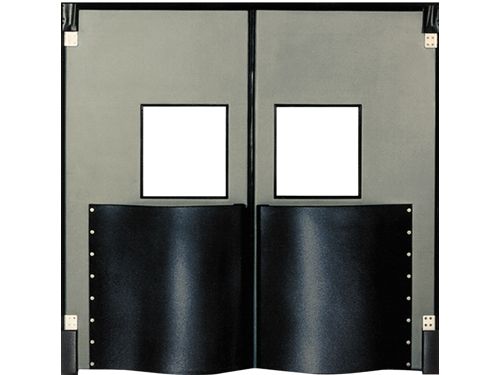

  • Durulite Industrial Traffic Door

Traffic Doors also known as swing doors, impact doors and double acting doors, are a cost effective solution for fast and efficient, two-way movement through an opening where visual, sound and environmental barriers are required. Chase impact doors are tailored to suit many different applications and markets.
  • Colours

    Black Black

    Beige Beige

    Chocolate_Brown Chocolate Brown

    Medium_Brown Medium Brown

    Metallic_Gray Metallic Grey

    Cloud_Gray Cloud Grey

    Navy Navy

    Red Red

    Royal_Blue Royal Blue

    Cadet_Blue Cadet Blue

    Burgundy Burgundy

    Forest_Green Forest Green

    Jade Jade

    White White

    Door Panel

    The industrial door is lightweight, weighing only 3.5 pounds per square foot, easy to open, operates smoothly and allows for safe passage of personnel and damage free equipment. The overall panel thickness is 1-7/8”, the skin thickness is 1/4” thick and the door can be sized up to a 10’ x 10’. Cross-linked polyethylene outer skin retains it properties to –40°F.

    Insulated Core

    The foamed-in-place Non-CFC urethane core (permanently bonded to the outer surface) does not break down when impacted, provides noise control and excellent insulation with an R factor of 10.83.

    Internal Reinforcement

    The leading and back edge of door are internally reinforced with tubular steel to strengthen the door panel.

    Gasketing

    USDA accepted durable gasketing is factory applied without the use of metal strips or fasteners, making it easy to replace in the field.

    Upper Hinge

    Double-acting v-cam hinging system operates smoothly and is virtually maintenance free with its permanently lubricated needle bearing roller assembly. Optional stainless steel hinge is available.

    Bottom Hinge

    For additional strength and durability the hinge is designed with pillow block constructed of zinc plated ductile iron (stainless steel is optional) with a UHMW sleeve and solid cast aluminum lower hinge adapter. Plus the lower hinge adapter has a provision for mounting an optinal spring assist.

    Window

    1/8” thick polycarbonate window with black frame is recessed a minimum of 1/8” from the face of the panel to protect the window’s surface from abrasion caused by passing loads.
    • Supermarket
    • Industrial
    • Pharmaceutical
    • Food Processing
    • Institutional
    • Postal
    • Chemical
    • Cleanrooms
    • Cold Storage
    • Prisons/Correctional
    • Water/Wastewater
    • Warehouse Distribution
    • Windows
    • Bumpers
    • Hinge Guard
    • Impact Plate
    • Cart Guards/Rub Rails
    • Security Lock
    • Double PaneWindows
    • Kick Plate
    • Spring Assist
    • Push Plate and Pull Handle
    • Hold Open Device

    Colours

    Colours

    Black Black

    Beige Beige

    Chocolate_Brown Chocolate Brown

    Medium_Brown Medium Brown

    Metallic_Gray Metallic Grey

    Cloud_Gray Cloud Grey

    Navy Navy

    Red Red

    Royal_Blue Royal Blue

    Cadet_Blue Cadet Blue

    Burgundy Burgundy

    Forest_Green Forest Green

    Jade Jade

    White White

    Features

    Door Panel

    The industrial door is lightweight, weighing only 3.5 pounds per square foot, easy to open, operates smoothly and allows for safe passage of personnel and damage free equipment. The overall panel thickness is 1-7/8”, the skin thickness is 1/4” thick and the door can be sized up to a 10’ x 10’. Cross-linked polyethylene outer skin retains it properties to –40°F.

    Insulated Core

    The foamed-in-place Non-CFC urethane core (permanently bonded to the outer surface) does not break down when impacted, provides noise control and excellent insulation with an R factor of 10.83.

    Internal Reinforcement

    The leading and back edge of door are internally reinforced with tubular steel to strengthen the door panel.

    Gasketing

    USDA accepted durable gasketing is factory applied without the use of metal strips or fasteners, making it easy to replace in the field.

    Upper Hinge

    Double-acting v-cam hinging system operates smoothly and is virtually maintenance free with its permanently lubricated needle bearing roller assembly. Optional stainless steel hinge is available.

    Bottom Hinge

    For additional strength and durability the hinge is designed with pillow block constructed of zinc plated ductile iron (stainless steel is optional) with a UHMW sleeve and solid cast aluminum lower hinge adapter. Plus the lower hinge adapter has a provision for mounting an optinal spring assist.

    Window

    1/8” thick polycarbonate window with black frame is recessed a minimum of 1/8” from the face of the panel to protect the window’s surface from abrasion caused by passing loads.

    Applications

    • Supermarket
    • Industrial
    • Pharmaceutical
    • Food Processing
    • Institutional
    • Postal
    • Chemical
    • Cleanrooms
    • Cold Storage
    • Prisons/Correctional
    • Water/Wastewater
    • Warehouse Distribution

    Options

    • Windows
    • Bumpers
    • Hinge Guard
    • Impact Plate
    • Cart Guards/Rub Rails
    • Security Lock
    • Double PaneWindows
    • Kick Plate
    • Spring Assist
    • Push Plate and Pull Handle
    • Hold Open Device
