Name: AirGard Uni-Flex 240
Brand: Door Doctor

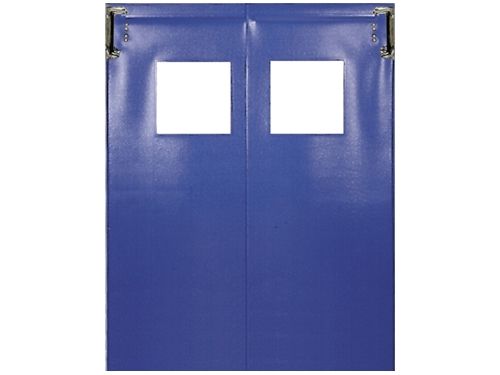

AirGard Uni-Flex 240 Flexible Door

Flexible doors are a cost-effective way to provide a swing door on openings for heavy traffic applications. These traditional doors provide a maximum opening clearance for wide loads. Replacement for existing doors is fast and easy due to the simple construction of our top-mounted gravity hinging system.

Colours
Black
Beige
Chocolate Brown
Forest Green
Medium Brown
Metallic Grey
Navy
Red
Royal Blue
Door Panel
Constructed of two layers of .120” PVC, laminated together to a thickness of .240" and embossed with a textured finish. Approximate weight is 3 PSF.
Leading Edge
Standard overlap at center on biparting models is 1-1/2” and provides a noise and weather barrier.
Window
Standard configuration is 15” x 14” clear vinyl window centered in each panel 60” from the floor (Cal-OSHA available). Other window configurations are available.
Top Mounted Gravity Hinge
Standard with the Chase top-mounted gravity hinging system that opens instantly upon contact, then closes automatically by gravity.
Bracket Arm Adjustment Hinge
Optional bracket arm adjustment feature compensates for jambs that are not plumb.
Impact Plates
Optional PVC impact plates are available in the following colors: forest green, navy, metallic gray, medium brown, red, royal blue, chocolate brown and black.
Supermarket

Retail

Food Processing

Institutional

Cold Storage

Warehouse Distribution
Windows

Impact Plate
Colours
Colours
Black
Beige
Chocolate Brown
Forest Green
Medium Brown
Metallic Grey
Navy
Red
Royal Blue
Features
Door Panel
Constructed of two layers of .120” PVC, laminated together to a thickness of .240" and embossed with a textured finish. Approximate weight is 3 PSF.
Leading Edge
Standard overlap at center on biparting models is 1-1/2” and provides a noise and weather barrier.
Window
Standard configuration is 15” x 14” clear vinyl window centered in each panel 60” from the floor (Cal-OSHA available). Other window configurations are available.
Top Mounted Gravity Hinge
Standard with the Chase top-mounted gravity hinging system that opens instantly upon contact, then closes automatically by gravity.
Bracket Arm Adjustment Hinge
Optional bracket arm adjustment feature compensates for jambs that are not plumb.
Impact Plates
Optional PVC impact plates are available in the following colors: forest green, navy, metallic gray, medium brown, red, royal blue, chocolate brown and black.
Applications
- Supermarket
- Retail
- Food Processing
- Institutional
- Cold Storage
- Warehouse Distribution
Options
- Windows
- Impact Plate
