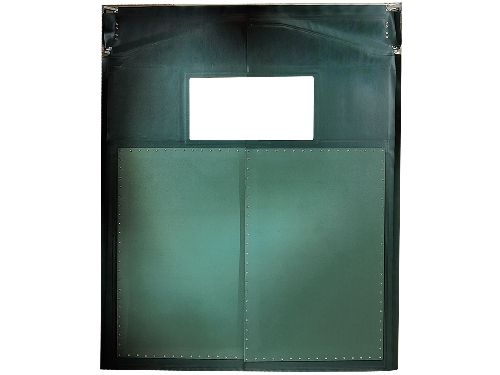

AirGard 100 Flexible Door
Flexible doors are a cost-effective way to provide a swing door in openings for heavy traffic applications. The top mounted gravity-operated hinge system allows the door to open fully and close automatically, allowing easy access and conserving energy. These doors are easy to install and virtually maintenance free.
Colour
Forest GreenDoor Panel
Constructed of 45 oz. USDA accepted, abrasion-resistant, vinyl coated nylon material. Each door panel includes one row of flexible horizontal stays. Approximate weight is 2-1/2 PSF. Available in green only.Wipers
For a positive seal, wipers are provided at the top, bottom and on the jamb sides.Leading Edge
3” overlap at the center on bi-parting doors provides a noise and temperature barrier.Pocket Weights
Provided at the bottom of each panel.Windows
Various window configurations are available, type 30” x 14” is standard.Top Mounted Gravity Hinge
Standard with the Chase top-mounted gravity hinging system that opens instantly upon contact, then closes automatically by gravity.AirGard 100E
The same construction as the Model 100, but includes 48” high, .125 Kydex or polyolefin impact plates on both sides of the panel. The door and Kydex impact plates are available in green only.AirGard 100CSE
The same construction as the Model 100, but includes full height, .125 Kydex or polyolefin impact plates on both sides of the panel. The door and Kydex impact plates are available in green only.- Supermarket
- Retail
- Industrial
- Food Processing
- Institutional
- Cold Storage
- Warehouse Distribution
- Windows
- Impact Plate
Colour
Colour
Forest GreenFeatures
Door Panel
Constructed of 45 oz. USDA accepted, abrasion-resistant, vinyl coated nylon material. Each door panel includes one row of flexible horizontal stays. Approximate weight is 2-1/2 PSF. Available in green only.Wipers
For a positive seal, wipers are provided at the top, bottom and on the jamb sides.Leading Edge
3” overlap at the center on bi-parting doors provides a noise and temperature barrier.Pocket Weights
Provided at the bottom of each panel.Windows
Various window configurations are available, type 30” x 14” is standard.Top Mounted Gravity Hinge
Standard with the Chase top-mounted gravity hinging system that opens instantly upon contact, then closes automatically by gravity.AirGard 100E
The same construction as the Model 100, but includes 48” high, .125 Kydex or polyolefin impact plates on both sides of the panel. The door and Kydex impact plates are available in green only.AirGard 100CSE
The same construction as the Model 100, but includes full height, .125 Kydex or polyolefin impact plates on both sides of the panel. The door and Kydex impact plates are available in green only.Applications
- Supermarket
- Retail
- Industrial
- Food Processing
- Institutional
- Cold Storage
- Warehouse Distribution
Options
- Windows
- Impact Plate
Downloads:
