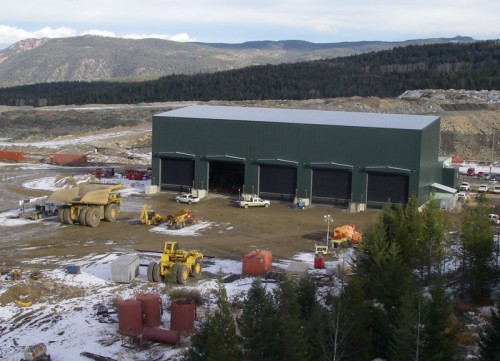

The industrial door TNR HDXL Extra Large Size Rubber Door offered by Door Doctor is ideal for heavy manufacturing, steel, pulp & paper, water management, oil & gas or mining applications.
TNR HDXL Extra Large Roll-up Industrial Rubber Garage Door
-
HDXL Model Specifications
- Suitable for applications up to 55 feet wide and 35 feet high
- Self-supporting channel steel C10 & flatbar mounting assembly
- Knock-away double angle steel bottom bar for 15lb/ft with rubber loop and reversing edge
- Frame mounted thru-beam photoelectric sensor
- High-Efficiency Heligear Head (HG) Operator with multi-function PLC panel
- Door speed of up to 12 inches per second
- Counterbalance spring assembly cycle rating of 50,000
ALL TNR INDUSTRIAL RUBBER ROLL-UP DOORS FEATURE:
- 1/4" SBR rubber, polyester core weave remains functional in temperatures -40ºF to +180ºF
- Limited Lifetime warranty on curtain and NEWGEN Guide System. 2-year warranty on all other parts & workmanship
- Patented NEWGEN Guide and Curtain Lok System. After an impact the door is up and running in minutes
- Sleek profile, easy installation, reduced clearances & minimal maintenance. No hinges, cables, pulleys or tension springs
- Heavy Duty industrial drive system with soft start / soft stop frequency inverter drive (except on manual doors)
- Self-supporting steel frame, Knock-away bottom bar, thru-beam photoelectric safety sensor
Specifications
HDXL Model Specifications
- Suitable for applications up to 55 feet wide and 35 feet high
- Self-supporting channel steel C10 & flatbar mounting assembly
- Knock-away double angle steel bottom bar for 15lb/ft with rubber loop and reversing edge
- Frame mounted thru-beam photoelectric sensor
- High-Efficiency Heligear Head (HG) Operator with multi-function PLC panel
- Door speed of up to 12 inches per second
- Counterbalance spring assembly cycle rating of 50,000
TNR Industrial Doors Features
ALL TNR INDUSTRIAL RUBBER ROLL-UP DOORS FEATURE:
- 1/4" SBR rubber, polyester core weave remains functional in temperatures -40ºF to +180ºF
- Limited Lifetime warranty on curtain and NEWGEN Guide System. 2-year warranty on all other parts & workmanship
- Patented NEWGEN Guide and Curtain Lok System. After an impact the door is up and running in minutes
- Sleek profile, easy installation, reduced clearances & minimal maintenance. No hinges, cables, pulleys or tension springs
- Heavy Duty industrial drive system with soft start / soft stop frequency inverter drive (except on manual doors)
- Self-supporting steel frame, Knock-away bottom bar, thru-beam photoelectric safety sensor
