G-4400

  • Garaga G-4400 Door

Perfect for repair shops, fire stations, bars and restaurant terraces, etc.

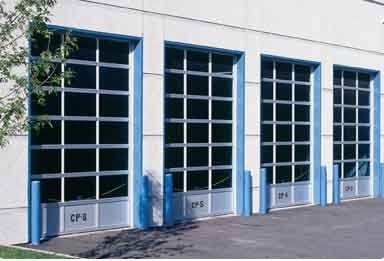

All made of extruded aluminium, Garaga G-4400 door is ideal for environments needing a very strong natural lighting; repair shops, fire stations, restaurant terraces, etc. A wide selection of windows and frames is available.

  • Features

    • Thickness of the door 1 3⁄4 in. (44.5 mm).
    • Clear anodized, White or Black pre-painted tubular extrusions.
    • Top-to-bottom end extrusion 6 1⁄4 in. (159 mm) at perimeter.
    • Double hinge end extrusion, 6 1⁄4 in. (159 mm).
    • Thickness of tubular extrusions: 0.125 in. (3.2 mm) at hinge fastening points.
    • Weatherstripping between sections.
    • Bottom panel weatherstripping.
    • Rigid vinyl (PVC) pane moulding.
    • Center hinge equally spaced.
    • Integral reinforcement struts (for doors 14 feet (4267 mm)) wide and over.
    • Kick proof panel, pre-painted or anodized aluminum, choice of 11 colours including anodized, panel only.

    Price comparison*

    Door model

    Price difference compared to the G-5000
    G-1000 (aluminum of 0,60 mm) R-16 (k=0,357 W/m 2 K) 120
    G-2323 (23 gauge steel) R-16 (k=0,357 W/m 2 K) 133
    G-2023 (20/23 gauge steel) R-16 (k=0,357 W/m 2 K) 146
    G-2020 (20/20 gauge steel) R-16 (k=0,357 W/m 2 K) 176
    G-4400 (station service door) R: not applicable Because this door is fully glazed, it is difficult to compare with others.
    G-5000 (26 gauge steel) R-16 (k=0,357 W/m 2 K) 100
    G-5138 (26 gauge steel) R-12 (k=0,476 W/m 2 K) 95
    G-8000 (24 gauge steel) Non-insulated 55
    G-8500 (24 gauge steel) R-6.6 (k=0,860 W/m 2 K) 75
      * For a door of the same dimensions and with the same hardware system. Installation included. Manual operation. Price comparison may vary depending on the cost of the door opener and accessories.

    Colours

    he G-4400 with aluminum extrusions is made with Clear Anodized, pre-painted White or Black. Kick proof panel, pre-painted aluminium, choice of 11 colors including anodized, panel only. The G-4400 Polycarbonate (Triple wall sheet) is available in 2 colors lexan sheets: clear and bronze

    Patterns

    motifs_anodise_G4000 Clear Anodized

    motif_emaille_kickproof_G4000 Clear Anodized with Kick Proof

    motif_SylverPanel_G4400 Clear Anodized with Silver G-5000 pannel



    Windows

    We offer a wide choice of thermo, clear or tinted panes, acrylic panes, Lexan polycarbonate tempered panes, etc. Contact our technical service to order any other type of window.

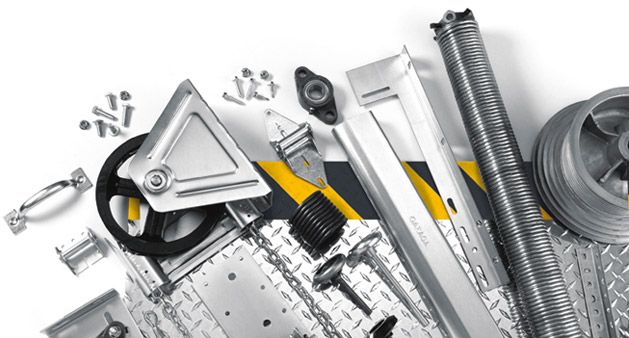

    Hardware System

    • 13 or 14-gauge, 2 inch (51 mm) commercial track (for doors up to 180 kg (396 lbs) or 10 m2 (108 sqft)) or 12-gauge, 3 inch (75 mm) industrial tracks.
    • Holicoidal torsion springsferronnerie

    Available sizesI

    Widths: from 4' to 24', from 1 219 mm to 7 315 mm increments Heights: from 6' to 18', from 1 829 mm to 5 486 mm Custom size to the nearest 1 in (25,4 mm) Number of units per section1 96 to 111 in (2 438 to 2 819 mm) – 2 112 to 147 in (2 845 to 3 734 mm) – 3 148 to 194 in (3 759 to 4 928 mm) – 4 195 to 230 in (4 953 to 5 842 mm) – 5 231 to 264 in2 (5 867 to 6 706 mm) – 6 265 to 288 in2 (6 731 to 7 315 mm) – 7 I Please contact our Technical service for larger sizes and/or option of changing the number of units per section. 2 With G-4400 Polycarbonate only.

    Features

    Features

    • Thickness of the door 1 3⁄4 in. (44.5 mm).
    • Clear anodized, White or Black pre-painted tubular extrusions.
    • Top-to-bottom end extrusion 6 1⁄4 in. (159 mm) at perimeter.
    • Double hinge end extrusion, 6 1⁄4 in. (159 mm).
    • Thickness of tubular extrusions: 0.125 in. (3.2 mm) at hinge fastening points.
    • Weatherstripping between sections.
    • Bottom panel weatherstripping.
    • Rigid vinyl (PVC) pane moulding.
    • Center hinge equally spaced.
    • Integral reinforcement struts (for doors 14 feet (4267 mm)) wide and over.
    • Kick proof panel, pre-painted or anodized aluminum, choice of 11 colours including anodized, panel only.

    Price comparison*

    Door model

    Price difference compared to the G-5000
    G-1000 (aluminum of 0,60 mm) R-16 (k=0,357 W/m 2 K) 120
    G-2323 (23 gauge steel) R-16 (k=0,357 W/m 2 K) 133
    G-2023 (20/23 gauge steel) R-16 (k=0,357 W/m 2 K) 146
    G-2020 (20/20 gauge steel) R-16 (k=0,357 W/m 2 K) 176
    G-4400 (station service door) R: not applicable Because this door is fully glazed, it is difficult to compare with others.
    G-5000 (26 gauge steel) R-16 (k=0,357 W/m 2 K) 100
    G-5138 (26 gauge steel) R-12 (k=0,476 W/m 2 K) 95
    G-8000 (24 gauge steel) Non-insulated 55
    G-8500 (24 gauge steel) R-6.6 (k=0,860 W/m 2 K) 75
      * For a door of the same dimensions and with the same hardware system. Installation included. Manual operation. Price comparison may vary depending on the cost of the door opener and accessories.

    Colours and Designs

    Colours

    he G-4400 with aluminum extrusions is made with Clear Anodized, pre-painted White or Black. Kick proof panel, pre-painted aluminium, choice of 11 colors including anodized, panel only. The G-4400 Polycarbonate (Triple wall sheet) is available in 2 colors lexan sheets: clear and bronze

    Patterns

    motifs_anodise_G4000 Clear Anodized

    motif_emaille_kickproof_G4000 Clear Anodized with Kick Proof

    motif_SylverPanel_G4400 Clear Anodized with Silver G-5000 pannel



    Windows

    Windows

    We offer a wide choice of thermo, clear or tinted panes, acrylic panes, Lexan polycarbonate tempered panes, etc. Contact our technical service to order any other type of window.

    Hardware

    Hardware System

    • 13 or 14-gauge, 2 inch (51 mm) commercial track (for doors up to 180 kg (396 lbs) or 10 m2 (108 sqft)) or 12-gauge, 3 inch (75 mm) industrial tracks.
    • Holicoidal torsion springsferronnerie

    Specifications

    Available sizesI

    Widths: from 4' to 24', from 1 219 mm to 7 315 mm increments Heights: from 6' to 18', from 1 829 mm to 5 486 mm Custom size to the nearest 1 in (25,4 mm) Number of units per section1 96 to 111 in (2 438 to 2 819 mm) – 2 112 to 147 in (2 845 to 3 734 mm) – 3 148 to 194 in (3 759 to 4 928 mm) – 4 195 to 230 in (4 953 to 5 842 mm) – 5 231 to 264 in2 (5 867 to 6 706 mm) – 6 265 to 288 in2 (6 731 to 7 315 mm) – 7 I Please contact our Technical service for larger sizes and/or option of changing the number of units per section. 2 With G-4400 Polycarbonate only.
