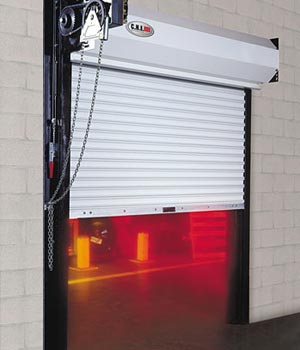

CHI 7000 Fire Door
The Guardian™ Fire Door is engineered to meet ever-increasing demands of property owners and insurance underwriters in a simple, easy-to-test, and reset fire protection product. Utilizing standard chain hoist operation, these rolling steel doors feature a reliable, safe procedure for frequent drop testing with a U.L. label rated from 3/4-hour to 4-hour protection. Manual push-up operation, fail-safe, and automatic reset motor operation models are optional to the Guardian standard. The National Fire Protection Association (NFPA) and other model codes recommend frequent drop testing of rolling steel fire doors to ensure a continuous state of operational readiness. C.H.I. strongly promotes these recommendations with the Guardian’s advanced design features.
Fire door features
- Safe, simple, inexpensive, and repeatable drop testing is now made possible in any facility with the flip of a handle
- No ladders, tools, or equipment are required to drop test and reset Guardian™ Simple Test Fire Doors
- Installation time is greatly reduced because there is no complicated release and governor assemblies
- Curtain gauge selection: 22, 20, and 18 gauge galvanized, high tensile steel
- Slat Profiles: Curved, Flat
- Operation: Manual push-up, chain hoist (standard) or motor operation
- Colors: Pre-painted gray, white, tan, and brown or galvanized finish. Powder-coat options available.
- Guides mount to approved masonry, steel, and sheet rock jambs
- Options and accessories available
Fire door curtain
Slat profile
Flat Slat (FS) cover 2-1/2” high by 3/4” deep
Curved Slat (CS) cover 2-5/8” high x 7/8” deepEndlocks & Windlocks
- Malleable, zinc-placted cast iron endlocks and windlocks maintain curtain alignment and increase windload capacity. Galvanized malleable cast endlocks are fastened to every other slat. Windlocks are added as dictated by door size & windload requirement.
- Windload: Designed to withstand a minimum of 20 lbs psf (per sq feet) of windload to an amount that prevents curtain per square foot of windload deflection to prevent buckling or being blown out of the guides.
Gauge
22, 20 or 18 gauge interlocking galvanized steelFinish
- Solid Gray, Gray & White, Tan & White
- Optional: Stock RAL powder-coat option in 188 colors
- Slats are hot-dipped galvanized per ASTM A653 A with baked on epoxy primer and polyester finish coat available
Vision panels
5" x 1-1/8"Fire Door mounting options
- Face Mount (E or Z) or Jamb Mount
- Mount to Steel, Wood or Masonry Jambs
Guides
- Fabricated from three (minimum 3/16” structural steel angles bolted together to form guide channel.
- Guide angles include curtain stops & flared guides
- Hot-dipped or cold sprayed galvanized guides (optional)
- Upward-expanding guides may be welded to approved steel construction
Headplates
- Fabricated from minimum 1/4” steel plate.
- Drive side of barrel to be provided with precision sealed ball bearing in cast iron housing
Fire Door operation
Manual Push-up, Chain-hoist (standard) * Note: Simple test feature not available on manual push-up doorsSprings
- Spring tension assembly within barrel by precision ball bearings.
- Assembly designed for 20,000 cycle life springs (Standard). Higher cycles optional
Motor operation
- Rolling Doors are also available with Motor operation.
- Refer to the motor operator area chart to select operator type based on dimensions and gauge
- Choose between wall mount or front of headplate mount. Use the charts to determine headroom, sideroom and backroom clearance requirements.
Fire door releases
- 165-degree fusible links provided as standard detection/release devices
- Fail-safe time delayed releases, smoke detectors and audible and visual warning systems are optional
- Drop speed is controlled by quiet governor – closing speed is between 6” to 24” per second per NFPA 80
Optional accessories
Hood
Fabricated from minimum 24-gauge galvanized steel sheet shaped to fit within the headplates. Intermediate hood support(s) furnished as required.Locking
Chain hoist doors operated doors furnished with chain hoist keeper suitable for padlocking. Plated slide locks optional.To learn more about fire safety standards, please click here.Features
