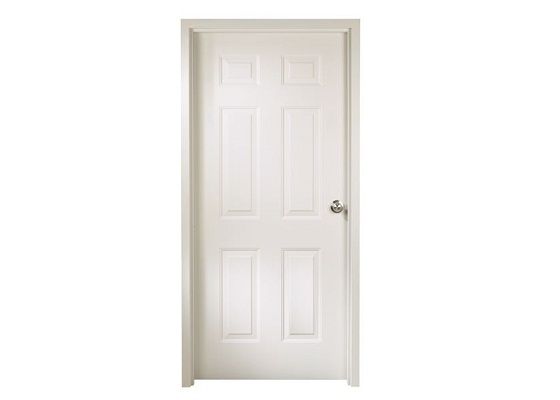

GenBossed Series steel door
The GenBossed Series six-panel design provides classic elegance that enhances your residential or commercial project. Door construction provides a seamless face, free of welding marks. Beyond its elegant classic appearance, the GenBossed Series can also be fire labeled for up to 3 hours. Standard doors are 1¾ in. (45 mm) thick and are available in 18 and 20 gauge galvannealed steel.
-
- Door faces are flush and free of any joints, welds or seams.
- Longitudinal door edges are interlocked with mechanical seam and reinforced with epoxy adhesive (seamless edge optional).
- Door edges are beveled 1/8” (3 mm) in 2” (50 mm).
- Door hinge reinforcements are prepared for standard weight 4 1/2″ x 4 1/2” (114 mm x 114 mm) hinges which can easily be converted to accommodate heavy weight hinges.
- GenBossed™ 18
- GenBossed™ 20
To learn more about fire safety standards, please click here.Specifications
- Door faces are flush and free of any joints, welds or seams.
- Longitudinal door edges are interlocked with mechanical seam and reinforced with epoxy adhesive (seamless edge optional).
- Door edges are beveled 1/8” (3 mm) in 2” (50 mm).
- Door hinge reinforcements are prepared for standard weight 4 1/2″ x 4 1/2” (114 mm x 114 mm) hinges which can easily be converted to accommodate heavy weight hinges.
Models
- GenBossed™ 18
- GenBossed™ 20
Fire safety standards
To learn more about fire safety standards, please click here. Downloads:
