Aluminium glass doors from Vertech 1800 Series
Aluminium glass doors form Vertech 1800 Series are institutionnal doors 2" thick that offer unmatched performance. Choose from many models with narrow or 3 1/2'', 4 5/8" and 6" wide stiles and their thermally broken versions.
All Vertech aluminum extruded components shall be of 6063-T5 alloy, and glass stops to be snap-on type. Corners will be mortised and welded, and a steel rod inserted in bottom rail and bolted at both ends will complete the assembly.
Aluminium glass doors shall be guarantied against defective materials for a period of one year after acceptance of work.
-
- Door thickness 2".
- Stiles width 2 1/8".
- Top rail height 3 3/4".
- Bottom rail height 6 15/16".
- Welded mortised assembly with reinforcing angles.
- Snap-on glass stops.
- Adjusment screw in top rail.
- Continuous steel rod in bottom rail.
- Optional glass stop #1806 for 7/8" sealed unit.
- Thermally broken door.
- Door thickness 2 1/4".
- Stiles width 3".
- Top rail height 4 5/8".
- Bottom rail height 7 13/16".
- Welded mortised assembly with reinforcing angles.
- Snap-on glass stops.
- Adjusment screw in top rail.
- Continuous steel rod in bottom rail.
- For 7/8" sealed unit glazing.
- Door thickness 2".
- Stiles width 3 1/2".
- Top rail height 3 3/4".
- Bottom rail height 6 15/16".
- Welded mortised assembly with reinforcing angles.
- Snap-on glass stops.
- Adjusment screw in top rail.
- Continuous steel rod in bottom rail.
- Optional glass stop #1606 for 7/8" sealed unit.
- Thermally broken door.
- Door thickness 2 1/4".
- Stile width 4 3/8".
- Top rail height 4 5/8".
- Bottom rail height 7 13/16".
- Welded mortised assembly with reinforcing angles.
- Snap on-glass stops.
- Adjustment screw in top rail.
- Continuous steel rod in bottom rail.
- For 7/8" sealed unit glazing.
- Door thickness 2".
- Stiles width 4 5/8".
- Top rail height 3 3/4".
- Bottom rail height 6 15/16".
- Welded mortised assembly with reinforcing angles.
- Snap-on glass stops.
- Adjusment screw in top rail.
- Continuous steel rod in bottom rail.
- Optional glass stop #1806 for 7/8" sealed unit.
- Thermally broken door.
- Door thickness 2 1/4".
- Stiles width 5 1/2".
- Top rail height 4 5/8".
- Bottom rail height 7 13/16".
- Welded mortised assembly with reinforcing angles.
- Snap-on glass stops.
- Adjusment screw in top rail.
- Continuous steel rod in bottom rail.
- For 7/8" sealed unit glazing.
- Door thickness 2".
- Stiles width 6".
- Top rail height 6 15/16".
- Bottom rail height 12".
- Welded mortised assembly with reinforcing angles.
- Snap-on glass stops.
- Adjusment screw in top rail.
- Continuous steel rod in bottom rail.
- Optional glass stop #1806 for 7/8" sealed unit.
- Door thickness 2 1/4".
- Stiles width 6 7/8".
- Top rail height 7 13/16".
- Bottom rail height 12 7/8".
- Welded mortised assembly with reinforcing angles.
- Snap-on glass stops.
- Adjusment screw in top rail.
- Continuous steel rod in bottom rail.
Please note that colors may vary according to your screen settings. For further information, please contact us.
Anodized aluminium
Anodized bronze

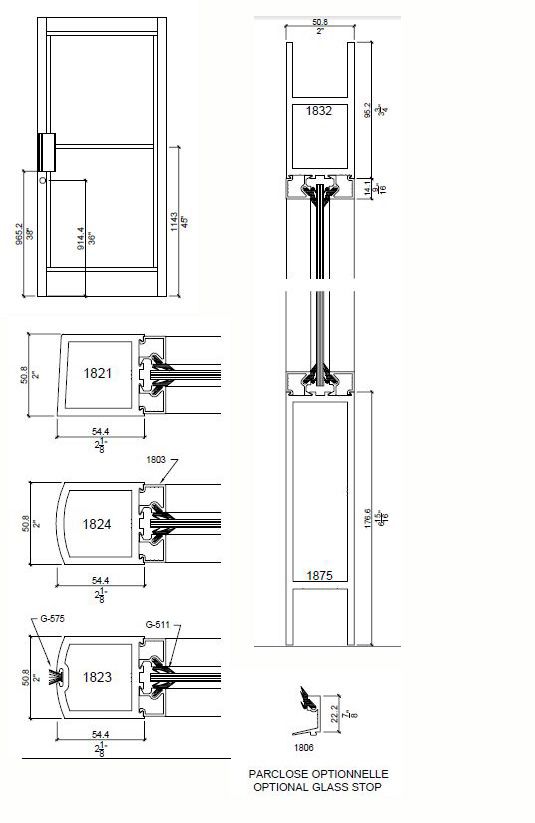

Anodized brownTo learn more about fire safety standards, please click here.1800
- Door thickness 2".
- Stiles width 2 1/8".
- Top rail height 3 3/4".
- Bottom rail height 6 15/16".
- Welded mortised assembly with reinforcing angles.
- Snap-on glass stops.
- Adjusment screw in top rail.
- Continuous steel rod in bottom rail.
- Optional glass stop #1806 for 7/8" sealed unit.

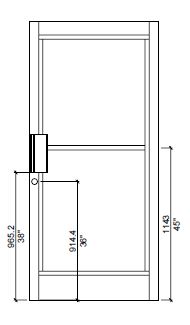

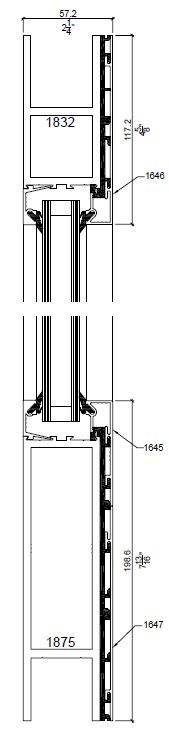

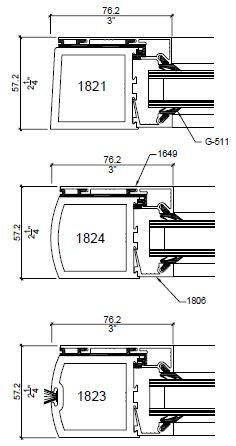

1805
- Thermally broken door.
- Door thickness 2 1/4".
- Stiles width 3".
- Top rail height 4 5/8".
- Bottom rail height 7 13/16".
- Welded mortised assembly with reinforcing angles.
- Snap-on glass stops.
- Adjusment screw in top rail.
- Continuous steel rod in bottom rail.
- For 7/8" sealed unit glazing.

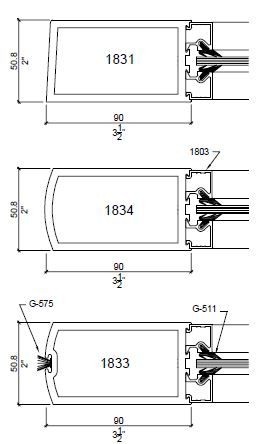

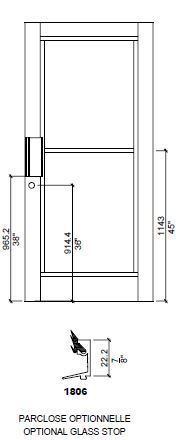

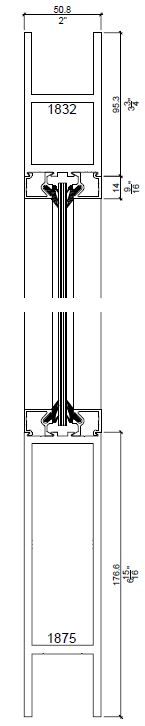

1830
- Door thickness 2".
- Stiles width 3 1/2".
- Top rail height 3 3/4".
- Bottom rail height 6 15/16".
- Welded mortised assembly with reinforcing angles.
- Snap-on glass stops.
- Adjusment screw in top rail.
- Continuous steel rod in bottom rail.
- Optional glass stop #1606 for 7/8" sealed unit.

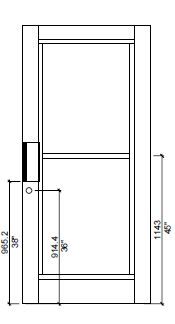

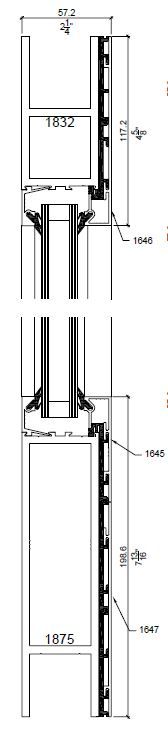

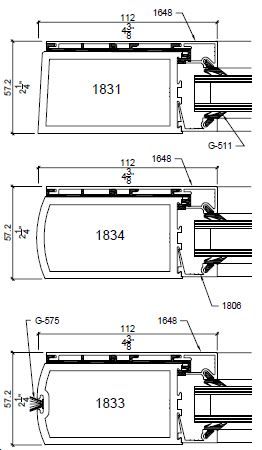

1835
- Thermally broken door.
- Door thickness 2 1/4".
- Stile width 4 3/8".
- Top rail height 4 5/8".
- Bottom rail height 7 13/16".
- Welded mortised assembly with reinforcing angles.
- Snap on-glass stops.
- Adjustment screw in top rail.
- Continuous steel rod in bottom rail.
- For 7/8" sealed unit glazing.

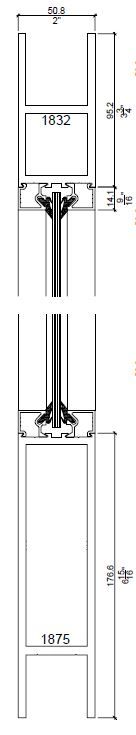

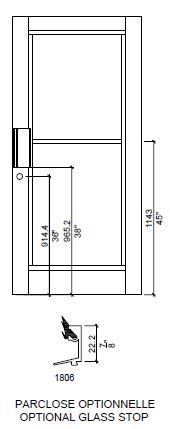

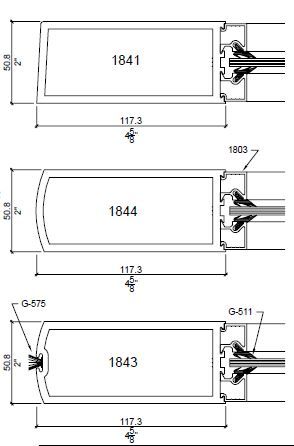

1840
- Door thickness 2".
- Stiles width 4 5/8".
- Top rail height 3 3/4".
- Bottom rail height 6 15/16".
- Welded mortised assembly with reinforcing angles.
- Snap-on glass stops.
- Adjusment screw in top rail.
- Continuous steel rod in bottom rail.
- Optional glass stop #1806 for 7/8" sealed unit.

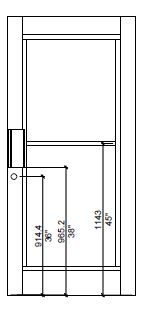

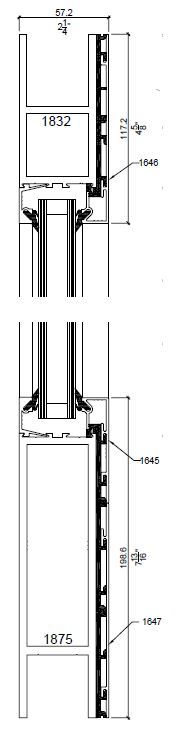

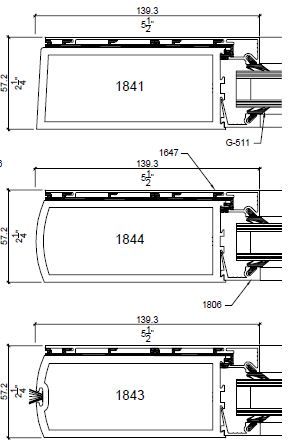

1845
- Thermally broken door.
- Door thickness 2 1/4".
- Stiles width 5 1/2".
- Top rail height 4 5/8".
- Bottom rail height 7 13/16".
- Welded mortised assembly with reinforcing angles.
- Snap-on glass stops.
- Adjusment screw in top rail.
- Continuous steel rod in bottom rail.
- For 7/8" sealed unit glazing.

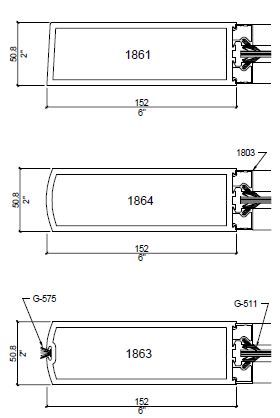

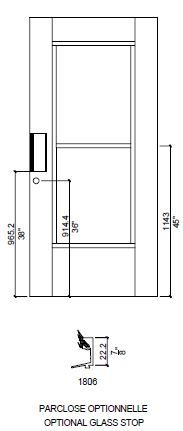

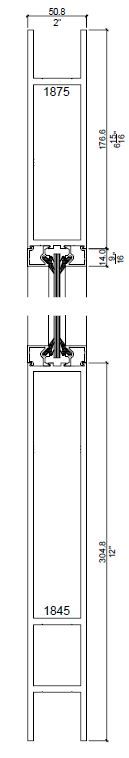

1860
- Door thickness 2".
- Stiles width 6".
- Top rail height 6 15/16".
- Bottom rail height 12".
- Welded mortised assembly with reinforcing angles.
- Snap-on glass stops.
- Adjusment screw in top rail.
- Continuous steel rod in bottom rail.
- Optional glass stop #1806 for 7/8" sealed unit.

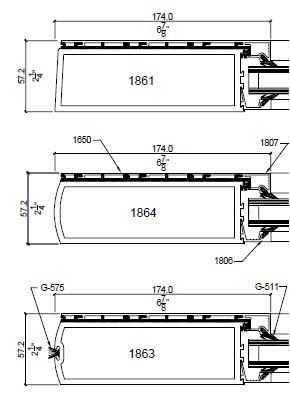

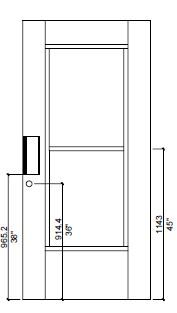

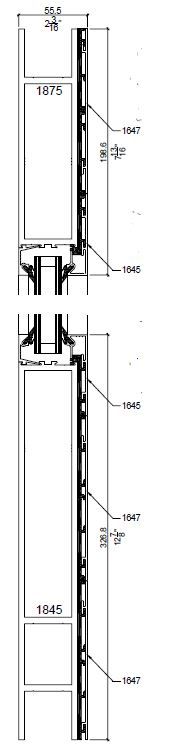

1865
- Door thickness 2 1/4".
- Stiles width 6 7/8".
- Top rail height 7 13/16".
- Bottom rail height 12 7/8".
- Welded mortised assembly with reinforcing angles.
- Snap-on glass stops.
- Adjusment screw in top rail.
- Continuous steel rod in bottom rail.

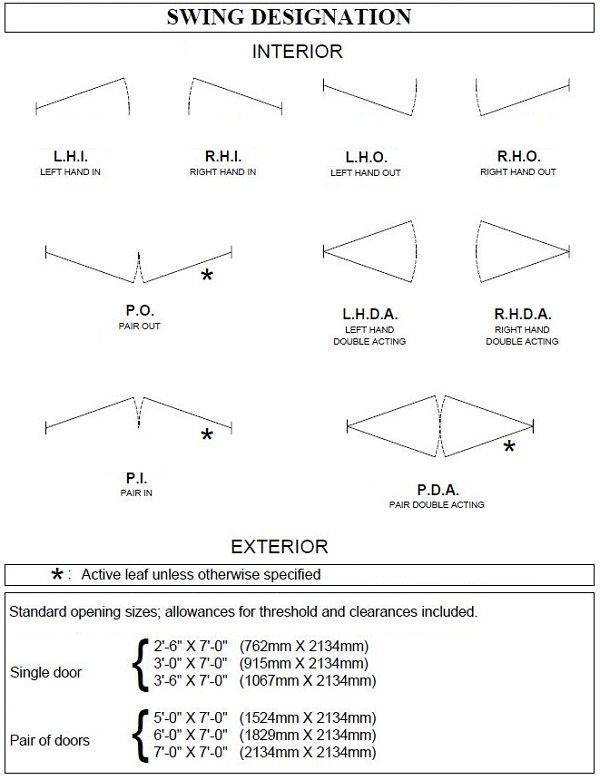

Swing Designation
Colours
Please note that colors may vary according to your screen settings. For further information, please contact us.
Anodized aluminium
Anodized bronze
Anodized brownFire safety standards
To learn more about fire safety standards, please click here. Downloads:
