Aluminium glass doors from Vertech 1700 Series
Aluminium glass doors form Vertech 1700 Series are a extra heavy duty assembly that offers unmatched performance. 1700 Series has several wide stiles models and many thermally broken models.
All Vertech aluminum extruded components shall be of 6063-T5 alloy, and glass stops to be snap-on type. Corners will be mortised and welded, and a steel rod inserted in bottom rail and bolted at both ends will complete the assembly.
Aluminium glass doors shall be guarantied against defective materials for a period of one year after acceptance of work.
-

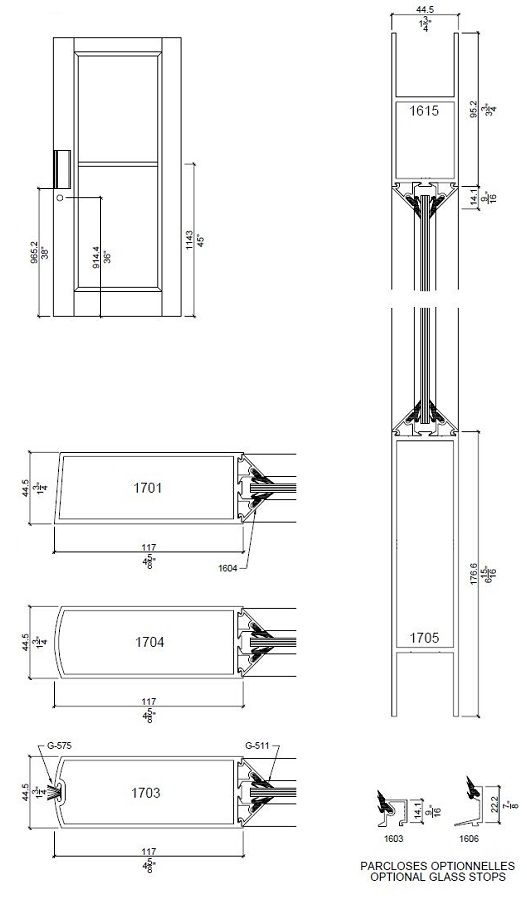

- Opening sizes : 26 3/16" x 72" (665 mm x 1830 mm).
- Door thickness 1 3/4".
- Stiles width 4 5/8".
- Top rail height 3 3/4".
- Bottom rail height 6 15/16".
- Welded mortised assembly with reinforcing angles.
- Snap-on glass stops.
- Adjusment screw in top rail.
- Continuous steel rod in bottom rail.
- Optional glass stop #1606 for 7/8" sealed unit.

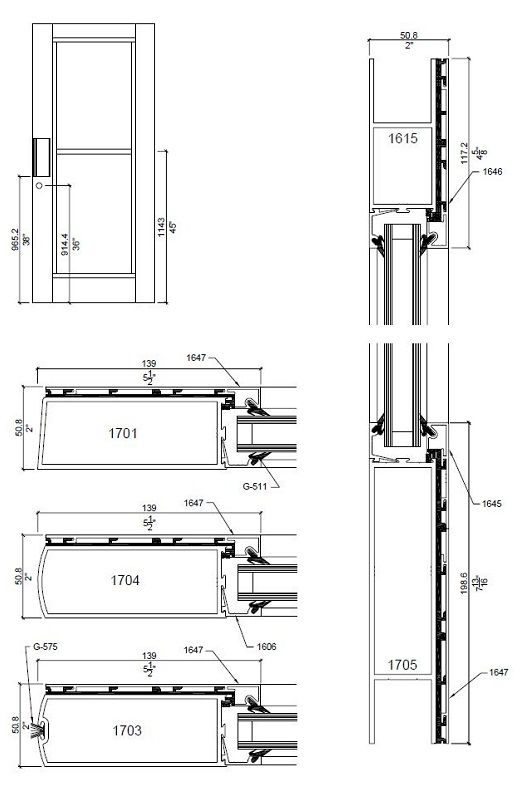

- Opening sizes : 26 3/16" x 72" (665 mm x 1830 mm).
- Thermally broken door.
- Door thickness 2".
- Stile width 5 1/2".
- Bottom rail height 7 13/16".
- Welded mortised assembly with reinforcing angles.
- Snap-on glass stops.
- Adjustment screw in top rail.
- Continuous steel rod in bottom rail.
- For 7/8" sealed unit glazing.
Please note that colors may vary according to your screen settings. For further information, please contact us.
Anodized aluminium
Anodized bronze
Anodized brownTo learn more about fire safety standards, please click here.1700
- Opening sizes : 26 3/16" x 72" (665 mm x 1830 mm).
- Door thickness 1 3/4".
- Stiles width 4 5/8".
- Top rail height 3 3/4".
- Bottom rail height 6 15/16".
- Welded mortised assembly with reinforcing angles.
- Snap-on glass stops.
- Adjusment screw in top rail.
- Continuous steel rod in bottom rail.
- Optional glass stop #1606 for 7/8" sealed unit.
1750
- Opening sizes : 26 3/16" x 72" (665 mm x 1830 mm).
- Thermally broken door.
- Door thickness 2".
- Stile width 5 1/2".
- Bottom rail height 7 13/16".
- Welded mortised assembly with reinforcing angles.
- Snap-on glass stops.
- Adjustment screw in top rail.
- Continuous steel rod in bottom rail.
- For 7/8" sealed unit glazing.
Swing designation
Couleurs
Please note that colors may vary according to your screen settings. For further information, please contact us.
Anodized aluminium
Anodized bronze
Anodized brownFire safety standards
To learn more about fire safety standards, please click here. Downloads:
