- Single phase: 120 V and 230 V
- Horsepower: DC motor, 24DC, 500mA, continuous-duty motor
- Minimum extra headroom required: 4 inches (102 mm)
- Security system: Security+ 2.0, technology that utilizes a tri-band signal
- Battery backup (7Ah): 2 batteries providing up to 112 cycles or up to 24 days.
- Specifically engineered to meet the needs of apartment houses, condominiums and low-clearance installations, the model HCTDCUL delivers unsurpassed safety, dependability and quiet operation. In a class by itself, the HCTDCUL is a heavy-duty, high-traffic operator designed with many exclusive features, including a Security+® receiver, built-in electronic reversing device, heavy-duty track and keyed trolley assembly.
- Trolley type door opener
- Total length installed:
- 8 ft rails: 121.5 inches
- 10 ft rails: 145.5 inches
- 12 ft rails: 169.5 inches
- The HCTDCUL is designed for installation in even the tightest applications. At only 8 inches high, it's up to 10 inches shorter than other overhead operators. In addition, it's extremely quiet so as not to disturb tenants living directly above the garage. For added safety, the HCT includes a key release feature for instant access in case of power failure. And all components are fully enclosed to greatly reduce the risk of injury.
- Advanced control board
- Electronic reversing device
- Built-in radio receiver
- Noise isolators
- Trolley assembly and key release
- DC motor, C-mounted continuous cycle motor
Included in package:
- LiftMaster HCTDCUL door opener
- Saftey photoelectric sensors (CPSUN4G)
- On-board receiver
- Rail according to door height (in separate packaging)
- 2 backup batteries (29-NP712)
* Remotes and wall station optional
3-button commercial wall control panels
The 880LM is a smart control panel that lets you program your remote controls quickly. It comes with a lighted LCD screen.
It is compatible with LiftMaster’s Security+ 2.0 door openers and is equipped with a timer that automatically closes the garage door (when a time has been preprogrammed).
It shows the time, temperature and any needed maintenance. It has built-in motion detector that activates the door opener lights.
It features a LOCK
button that blocks all use of the door opener if maintenance is needed.
The 881LM is a wall-mounted control panel.
It is compatible with LiftMaster Security+ 2.0 door openers with a YELLOW learn button and is equipped with a timer that automatically closes the garage door after a pre-programmed number of minutes.
It has an integrated motion detector that turn on opener lights automatically.
It features a LOCK
button that blocks all use of the door opener if maintenance is needed.
The 886LM is a motion-detecting control panel.
It is compatible with LiftMaster Security+ 2.0 door openers. It automatically turns on the opener light when motion is detected by its sensor.
It features a light control button, a LOCK
button to deactivate all remote controls for extra security, and a maintenance alert system.
1-button wall station/reset switch
1-button metal wall station for interior only. Comes standard with the LJ8900W and is compatible with commercial opeartors to use as a 1-button station. Can also be used as an external RESET button for the HCTDCUL.
3-button remote control
This powerful multi‑door control can operate up to 3 garage door openers, gate operators, or MyQTM enabled light accessories. Plus, it's compatible with all LiftMaster® garage door openers manufactured since 1993.
Encrypted DIP single button Remote Control
This single button remote control have 12 position DIP programming offers up to 4,096 codes. Encrypted to prevent code theft.
Encrypted DIP 3-button remote control
This remote control can operate a commercial door opener in open, close and stop mode.
Commercial Access Receiver
The LiftMaster STAR1000 access solution to manage multiple access points, such as control remote parking or a portal. The individual programming or bulk STAR1000 process simplifies the encoding of a large number of remotes.
Single entry access control keypad and proximity reader
A secure and vandal‑resistant controller. This keypad and proximity card reader is simple to install and looks great.
Red/Green traffic light
Indicates door or gate position. Provides assurance of safe entering and exiting of the facility, reducing the potential for costly accidents.

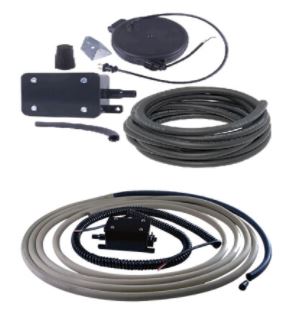

Pneumatic Sensing Edge Kit with exterior air switch
When a standard photo eyes protection system is present, a 2‑wire pneumatic sensing edge (air hose) may be added under the door as an ancillary protection device.
(655202) Pneumatic Sensing Edge Kit with exterior air switch, 2-wire take‑up reel (20' extended) and 14' air hose.
(655302) Pneumatic Sensing Edge Kit with exterior air switch, 2‑wire take‑up reel (20' extended) and 22' air hose.
(658202) Pneumatic Sensing Edge Kit with exterior air switch, 2‑wire coil cord and 14' air hose.
(658302) Pneumatic Sensing Edge Kit with exterior air switch, 2‑wire coil cord and 22' air hose.
Light curtain
The Light Curtain provides 36 inches of increased zone coverage for additional protection; indoor use. Maximum range of 33 foot.
Microwave motion sensor
This Motion Sensor detects objects moving toward or away from the door. Invisible microwave detection field can be set manually or with optional 50-HERK-RC2 remote.
LiftMaster internet gatewayTM
This revolutionary new accessory features built‑in MyQTM technology that connects to the Internet and allows you to monitor and operate your garage door opener, or turn on or off lights in or around your home, from anywhere in the world by using your smartphone or computer. It utilizes a two-way communication system that puts freedom and control in your hands.
