Aluminium glass doors from Vertech 1800 Series

Aluminium glass doors form Vertech 1800 Series are institutionnal doors 2" thick that offer unmatched performance. Choose from many models with narrow or 3 1/2'', 4 5/8" and 6" wide stiles and their thermally broken versions.

All Vertech aluminum extruded components shall be of 6063-T5 alloy, and glass stops to be snap-on type. Corners will be mortised and welded, and a steel rod inserted in bottom rail and bolted at both ends will complete the assembly.

Aluminium glass doors shall be guarantied against defective materials for a period of one year after acceptance of work.

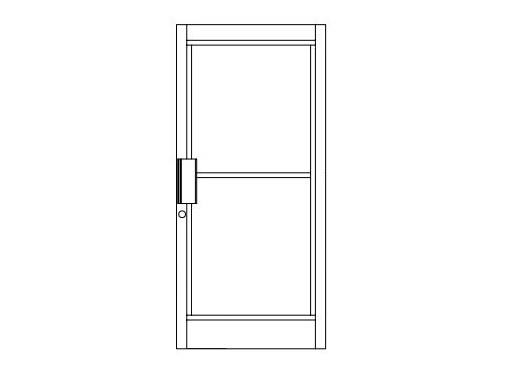

1800
  • Door thickness 2".
  • Stiles width 2 1/8".
  • Top rail height 3 3/4".
  • Bottom rail height 6 15/16".
  • Welded mortised assembly with reinforcing angles.
  • Snap-on glass stops.
  • Adjusment screw in top rail.
  • Continuous steel rod in bottom rail.
  • Optional glass stop #1806 for 7/8" sealed unit.

Onglet 1800

1805
  • Thermally broken door.
  • Door thickness 2 1/4".
  • Stiles width 3".
  • Top rail height 4 5/8".
  • Bottom rail height 7 13/16".
  • Welded mortised assembly with reinforcing angles.
  • Snap-on glass stops.
  • Adjusment screw in top rail.
  • Continuous steel rod in bottom rail.
  • For 7/8" sealed unit glazing.

vertech 1805-1 vertech 1805-3

vertech 1805-2

1830
  • Door thickness 2".
  • Stiles width 3 1/2".
  • Top rail height 3 3/4".
  • Bottom rail height 6 15/16".
  • Welded mortised assembly with reinforcing angles.
  • Snap-on glass stops.
  • Adjusment screw in top rail.
  • Continuous steel rod in bottom rail.
  • Optional glass stop #1606 for 7/8" sealed unit.

vertech 1830-1 vertech 1830-2 vertech 1830-3

1835
  • Thermally broken door.
  • Door thickness 2 1/4".
  • Stile width 4 3/8".
  • Top rail height 4 5/8".
  • Bottom rail height 7 13/16".
  • Welded mortised assembly with reinforcing angles.
  • Snap on-glass stops.
  • Adjustment screw in top rail.
  • Continuous steel rod in bottom rail.
  • For 7/8" sealed unit glazing.

vertech 1835-1 vertech 1835-3

vertech 1835-2

1840
  • Door thickness 2".
  • Stiles width 4 5/8".
  • Top rail height 3 3/4".
  • Bottom rail height 6 15/16".
  • Welded mortised assembly with reinforcing angles.
  • Snap-on glass stops.
  • Adjusment screw in top rail.
  • Continuous steel rod in bottom rail.
  • Optional glass stop #1806 for 7/8" sealed unit.

vertech 1840-1 vertech 1840-3 vertech 1840-2

1845
  • Thermally broken door.
  • Door thickness 2 1/4".
  • Stiles width 5 1/2".
  • Top rail height 4 5/8".
  • Bottom rail height 7 13/16".
  • Welded mortised assembly with reinforcing angles.
  • Snap-on glass stops.
  • Adjusment screw in top rail.
  • Continuous steel rod in bottom rail.
  • For 7/8" sealed unit glazing.

vertech 1845-1 vertech 1845-3 vertech 1845-2

1860
  • Door thickness 2".
  • Stiles width 6".
  • Top rail height 6 15/16".
  • Bottom rail height 12".
  • Welded mortised assembly with reinforcing angles.
  • Snap-on glass stops.
  • Adjusment screw in top rail.
  • Continuous steel rod in bottom rail.
  • Optional glass stop #1806 for 7/8" sealed unit.

vertech 1860-1 vertech 1860-3 vertech 1860-2

1865
  • Door thickness 2 1/4".
  • Stiles width 6 7/8".
  • Top rail height 7 13/16".
  • Bottom rail height 12 7/8".
  • Welded mortised assembly with reinforcing angles.
  • Snap-on glass stops.
  • Adjusment screw in top rail.
  • Continuous steel rod in bottom rail.

vertech 1865-1 vertech 1865-3 vertech 1865-2

Swing Designation

opening

Colours

32aluminium
Anodized aluminium

32bronze
Anodized bronze

32brun
Anodized brown

Please note that colors may vary according to your screen settings. For further information, please contact us.

Fire safety standards

To learn more about fire safety standards, please click here.
