Aluminium glass doors from Vertech 1780 Series

Aluminium glass doors form Vertech 1780 Series are deluxe doors with narrow stiles that offer unmatched performance. Also choose from many clear tempered glass doors, without stiles.

All Vertech aluminum extruded components shall be of 6063-T5 alloy, and glass stops to be snap-on type. Corners will be mortised and welded, and a steel rod inserted in bottom rail and bolted at both ends will complete the assembly.

Aluminium glass doors shall be guarantied against defective materials for a period of one year after acceptance of work.

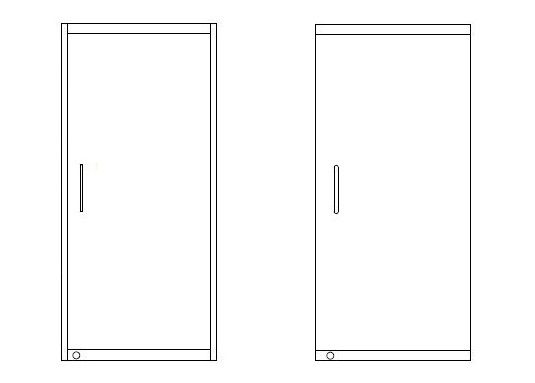

1780
  • Door thickness 1 3/4".
  • Stile width 1".
  • Top rail height 4 1/8".
  • Bottom rail height 4 1/8".
  • Optional divider of variable height.
  • Mechanical assembled.
  • Lock in bottom rail.
  • Center hung application only.
  • Prepared for 3/8" or 1/2" glazing only.

onglet 1780

1790
  • Door thickness 1 3/4".
  • Top rail height 4 1/8".
  • Bottom rail height 4 1/8".
  • Lock located in bottom rail.
  • Choice of alternate top and bottom rail.
  • Brass or stainless steel cover available.
  • Center hung application only.
  • Supplied with 1/2" clear tempered glass.

onglet1790

Swing designation

opening

Colours

32aluminium
Anodized aluminium

32bronze
Anodized bronze

32brun
Anodized brown

Please note that colors may vary according to your screen settings. For further information, please contact us.

Fire safety standards

To learn more about fire safety standards, please click here.
