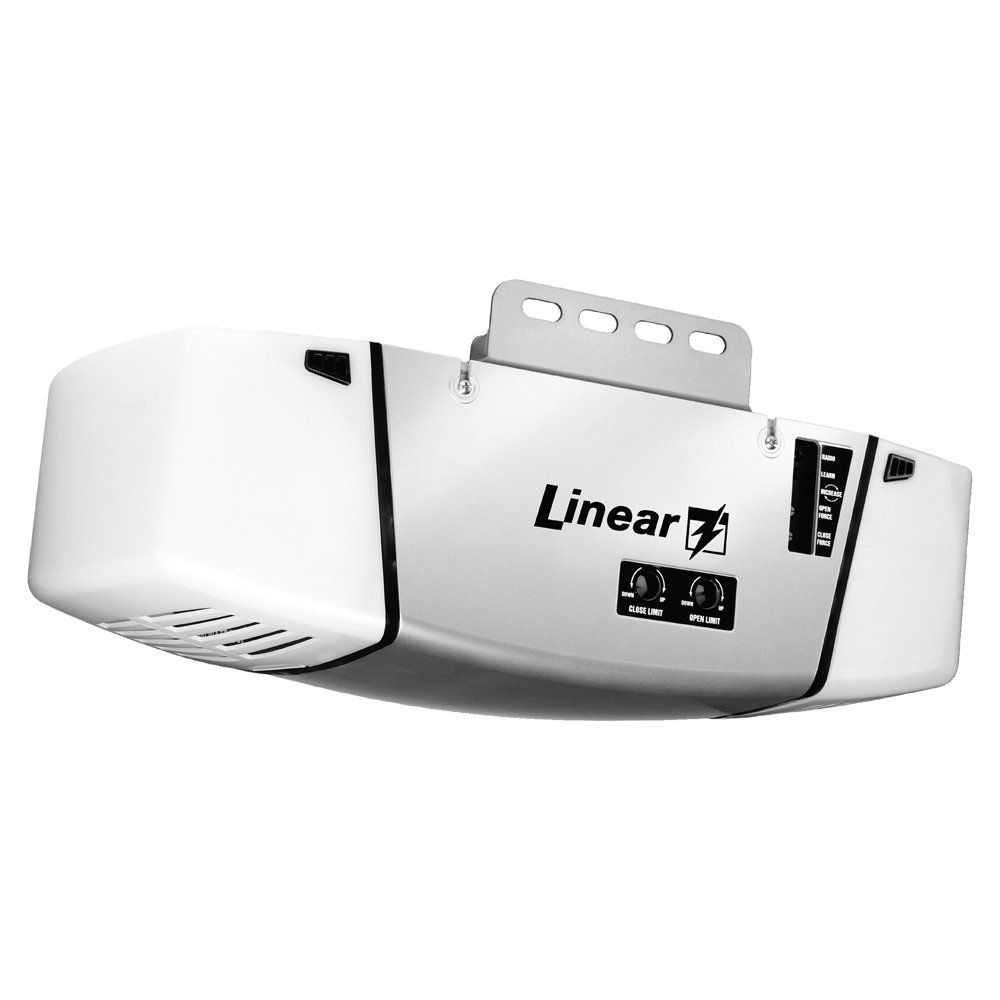

Linear LSO50 electric garage door operator

Dual-lamp 1/2 HP residential garage door operator with superior vibration isolation mounting brackets and noise dampening acoustical foam, compatible with belt & chain drive rails.

Features

Features

  • Noise reduction technology
  • Compatible with belt-drive or chain-drive T or I beam rails up to 10'
  • Smooth, quiet operation
  • Diagnostic system indicates six possible trouble conditions
  • Dual 100-watt courtesy lights (bulbs not included)
  • Built-in MegaCode format receiver
  • All operator controls and indicators on one side
  • Operator includes three-button MCT-3 visor transmitter and deluxe wall station
Warranties

Warranties

  • Lifetime - Motor
  • Lifetime - Belt
  • 5 years - Chain rails HCT7C, HCT8C, HCT10C
  • 5 years - Mechanical parts
  • 1 year - Electrical
Length

Overall length

  • LSO50 with HBT7C/HCT7C: 126.5"
  • LSO50 with HBT8C/HCT8C: 136"
  • LSO50 with HCT10C: 161.5"
Optional Acc.

Accessories compatible with the LSO50

  • ACT-21A : 1-Channel Key Ring Transmitter
  • ACT-21B : 1-Channel Block Coded Key Ring Transmitter
  • ACT-22A : 3-Channel Key Ring Transmitter
  • ACT-22B : 3-Channel Block Coded Key Ring Transmitter
  • ACT-31B : 1-Channel Block Coded Key Ring Transmitter
  • ACT-34B : 4-Channel Block Coded Key Ring Transmitter
  • ACT-31D : 1-Channel Block Coded Key Ring TRANS PROX Transmitter & Proximity Tag
  • ACT-34D : 4-Channel Block Coded Key Ring TRANS PROX Transmitter & Proximity Tag
  • FT-1 : Radio Interference Field Tester
  • MCT-1 : 1-Channel Visor Transmitter
  • MCT-2 : 2-Channel Visor Transmitter
  • MCT-3 : 3-Channel Visor Transmitter
  • MCT-11 : 1-Channel Visor Transmitter
  • MDKP : Exterior Wireless Keypad
  • MDR : 1-Channel Receiver
  • MDR-2 : 2-Channel Receiver
  • MDRG : 1-Channel Gate Receiver
  • MDR/U : 1-Channel Plug-in Receiver
  • MDT-1A : 1-Channel Visor Transmitter
  • MDT-1B : 1-Channel Block Coded Visor Transmitter
  • MDT-2A : 3-Channel Visor Transmitter
  • MDT-2B : 3-Channel Block Coded Visor Transmitter
  • MDT-4A : 5-Channel Visor Transmitter
  • MDT-4B : 5-Channel Block Coded Visor Transmitter
  • MT-1B : 1-Channel Block Coded Visor Transmitter
  • MT-2B : 2-Channel Block Coded Visor Transmitter
  • SMDRG : 1-Channel Gate Receiver
