AirGard 200 Flexible Door
Over 70 years ago, Chase Doors pioneered the original flexible AirGard® door with its unique top-mounted-only gravity hinging system, and it is still on the job today. Flexible doors are a cost-effective way to provide a swing door in openings for heavy traffic applications.
These traditional doors provide a maximum opening clearance for wide loads. Replacement for existing doors is fast and easy due to simple construction of a top-mounted gravity hinging system.
Constructed of two layers of USDA approved heavy-duty, abrasion-resistant, textured PVC laminated back to back. Each door panel also includes two rows of flexible horizontal stays.
For a positive seal, wipers are provided at the top and bottom with balloon jamb edge seals.
3” overlap at the center on bi-parting doors provides a noise and temperature barrier.

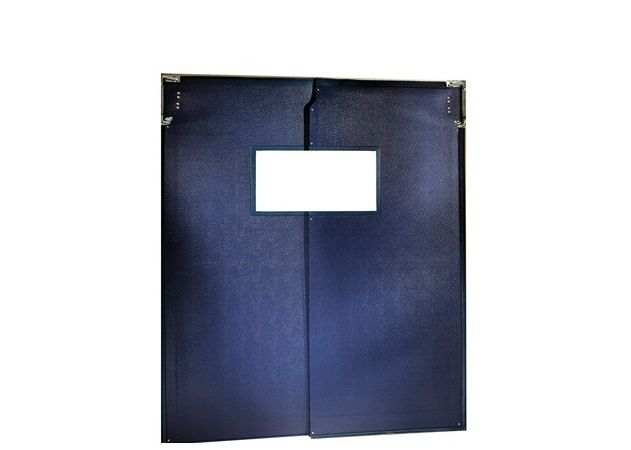

Various window configurations are available, shown is optional 30” x 14” clear vinyl window centered 60” from the floor. Standard window is type 50 and is centered in each panel. Cal-OSHA also available, centered 54” from floor. Other window configurations are available.
Top Mounted Gravity Hinge
Standard with the Chase top-mounted gravity hinging system that opens instantly upon contact, then closes automatically by gravity.
- Food Processing
- Cold Storage
- Warehouse Distribution
- Impact Plate
